Wir können auf ein grosses Steckverbinder Sortiment von Cvilux zurückgreifen und bieten Ihnen auch die Möglichkeit an Taster und Encoder über unsere langjährigen Partner in Fernost zu beziehen.
Richten Sie Ihre Anfrage an uns, wir freuen uns auf die Challenge!
Eine grosse Anzahl von Standardanzeigen steht zu Ihrer Verfügung. Mittels der wichtigsten Kriterien können Sie die Produkte sortieren und Ihre Auswahl treffen.
Die Listen zeigen nur eine kleine Auswahl aus unserem Standard-Sortiment. Fehlt das passende Display in der Liste? Zögern Sie nicht, uns zu kontaktieren.
| Bezeichnung | Size (inch) | Resolution | TFT Outline Dimension (mm) | Active Area (mm) | Viewing Direction | Interface | Brightness (nits) | Contrast | Top (°C) | Touch Screen | Touch IC Part No | Touch Interface | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MACHMI0096C1T-2 | 0.96 | 80 x 160 | 13.5 x 27.9 x 1.5 | 10.80 x 21.70 | Full | 4-wire SPI | 400 | 800 | -20...+70 | öffnen | |||
| MACHMI0154BT-3 | 1.54 | 240 x 240 | 31.52 x 33.95 x 1.75 | 27.72 x 27.72 | Full | 4-wire SPI | 600 | 800 | -20...+70 | öffnen | |||
| MACHMI0200ACT-2 | 2.0 | 320 x 240 | 46.10 x 40.96 x 2.53 | 40.80 x 30.60 | Full | MCU interface | 450 | 1000 | -30...+85 | öffnen | |||
| MACHMI0200ZT-3 | 2.0 | 240 x 320 | 34.60 x 47.80 x 2.05 | 30.60 x 40.80 | Full | 8-bit 8080 MCU, 4-wire SPI | 400 | 800 | -20...+70 | öffnen | |||
| MACHMI0240AGT-5 | 2.4 | 240 x 320 | 42.72 x 60.40 x 2.60 | 36.72 x 48.96 | Full | SPI, MCU, RGB | 500 | 800 | -20...+70°C | öffnen | |||
| MACHMI0283AAT-7 | 2.8 | 240 x 320 | 50.50 x 69.70 x 2.60 | 43.20 x 57.60 | Full | SPI, MCU, RGB | 500 | 800 | -20...+70 | öffnen | |||
| MACHMI0283AHT-2 | 2.8 | 480 x 640 | 45.90 x 64.90 x 1.51 | 43.20 x 57.60 | Full | 2-lane MIPI | 200 | 1500 | -20...+70 | öffnen | |||
| MACHJ029HXNN0101N | 2.9 | 376 x 960 | 31.2 x 76.603 x 2.11 | 67.68 x 26.508 | Full | 2-lane Mipi | 200 | 1500 | -20...+70 | öffnen | |||
| MACHMI0350ADT-5 | 3.5 | 320 x 240 | 76.90 x 63.90 x 3.10 | 70.08 x 52.56 | 12:00 (gray scale 6:00) | parallel CPU, RGB, serial 3-wire, 4-wire | 450 | 400 | -20...+70 | öffnen | |||
| MACHMI0350AUT-2 | 3.5 | 320 x 240 | 76.90 x 63.9 x 3.20 | 70.08 x 52.56 | Full | RGB | 550 | 300 | -30...+85 | öffnen | |||
| MACHMI0350AKT-8CP | 3.5 | 320 x 480 | 54.66 x 82.94 x4.0 | 48.96 x 73.44 | Full | SPI, MCU, RGB | 680 | 700 | -20...+70 | PCAP | FT5446-P03 | I2C | öffnen |
| MACHMI0350BAT-1 | 3.5 | 640 x 480 | 76.90 x 63.90 x 3.20 | 70.08 x 52.56 | Full | 3-wire SPI + 24 RGB | 450 | 800 | -20...+70 | öffnen | |||
| AM-480272MGTZQW-T74H | 4.3 | 480 x 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | Full | RGB | 425 | 800 | -30...+70 | PCAP | ST1624N32C | I2C | öffnen |
| MACHMI0430BFT-1CP | 4.3 | 800 x 480 | 105.50 x 67.20 x 5.03 | 95.04 x 53.86 | Full | RGB | 420 | 800 | -20...+70°C | PCAP | FT5446-P3 | I2C | öffnen |
| AM-800480N3TZQW-30H | 5.0 | 800 x 480 | 118.5 x 77.1 x 3.16 | 108.0 x 64.8 | Full | LVDS | 500 | 1000 | -30...+85 | öffnen | |||
| AM-800480N3TZQW-61H | 5.0 | 800 x 480 | 119.7 x 78.3 x 5.8 | 108.0 x 64.8 | Full | RGB | 1000 | 1000 | -20...+70 | öffnen | |||
| AM-800480N9TZQW-T26H | 5.0 | 800 x 480 | 118.5 x 77.1 x 3.16 | 108.0 x 64.8 | Full | HDMI | 425 | 1000 | -30...+85 | PCAP | ILI2511 | USB | öffnen |
| AM-800480NBTZQW-T01H | 5.0 | 800 x 480 | 118.5 x 66.4 x 3.16 | 108.0 x 64.8 | Full | RGB | 425 | 1000 | -20...+70 | PCAP | ILI2511 | I2C | öffnen |
| MACHMI0500AHT-3 | 5.0 | 800 x 480 | 120.7 x 75.80 x 3.10 | 108.0 x 64.80 | Full | RGB | 600 | 800 | -30...+85 | öffnen | |||
| AM-640480VTZQW-00H | 5.7 | 640 x 480 | 127.0 x 98.43 x 5.8 | 115.2 x 86.4 | Full | RGB | 500 | 1200 | -20...+70 | öffnen | |||
| AM-640480VTZQW-U0H-A | 5.7 | 640 x 480 | 144.0 x 109.5 x 23.2 | 115.2 x 96.4 | Full | UART, RS232, USB | 500 | 1200 | -20...+70 | öffnen | |||
| MACHMI0686BT-1 | 6.86 | 480 x 1280 | 66.70 x 181 x 4.70 | 60.22 x 160.59 | Full | 2-, 4-lane MIPI | 600 | 1500 | -20...+70 | öffnen | |||
| MACHMI0686BT-1CP | 6.86 | 480 x 1280 | 66.70 x 181 x 4.70 | 60.22 x 160.59 | Full | 4-lane MIPI | 500 | 1500 | -20...+70 | PCAP | GT911 | I2C | öffnen |
| AM-800480AYTZQW-TARH | 7.0 | 800 x 480 | 184.0 x 128.0 x 12.8 | 154.08 x 85.92 | Full | LVDS | 470 | 900 | -20...+70 | PCAP | EXC80W32 | I2C | öffnen |
| AM-800480AYTZQW-TBRH | 7.0 | 800 x 480 | 164.9 x 100 x 8.45 | 154.08 x 85.92 | Full | RGB | 470 | 900 | -20...+70 | PCAP | ILI2511 | I2C | öffnen |
| AM-800480CTZQW-B6H-A | 7.0 | 800 x 480 | 165.0 x 104.44 x 11.31 | 152.4 x 91.44 | Full | RGB | 1500 | 1000 | -30...+85 | öffnen | |||
| AM-1024600DTZQW-H0H-A | 7.0 | 1024 x 600 | 164.9 x 100.0 x 21.3 | 154.2144 x 85.92 | Full | HDMI | 500 | 800 | -20...+70 | öffnen | |||
| AM-1024600DTZQW-THNH-A | 7.0 | 1024 x 600 | 164.9 x 100.0 x 10.3 | 154.2144 x 85.92 | Full | HDMI | 850 | 800 | -20...+70 | PCAP | EXC80W32 | USB | öffnen |
| AM-1024600DTZQW-THTH-B | 7.0 | 1024 x 600 | 164.9 x 100 x 10.3 | 154.2144 x 85.92 | Full | HDMI | 425 | 800 | -20...+70 | PCAP | EXC80W32 | USB | öffnen |
| AM-1280800P2TZQW-THAH | 7.0 | 1280 x 800 | 162.3 x 107.9 x 13.80 | 149.76 x 93.6 | Full | HDMI | 400 | 800 | -20...+70 | PCAP | EXC80W32 | USB | öffnen |
| AM-1280800P4TZQW-THDH | 7.0 | 1280 x 800 | 162.30 x 107.90 x 13.8 | 149.76 x 93.60 | Full | HDMI | 850 | 800 | -20...+70 | PCAP | EXC80W32 | USB | öffnen |
| AM-1024768JTZQW-A0H | 8.0 | 1024 x 768 | 183.4 x 138.348 x 6.5 | 162.048 x 121.536 | Full | LVDS | 460 | 1800 | -20...+70 | öffnen | |||
| AM-1280720MTZQW-00H | 9.0 | 1280 x 720 | 211.44 x 126.89 x 6.96 | 198.72 x 111.78 | Full | LVDS | 1000 | 1000 | -30...+85 | öffnen | |||
| MACHMI0900HT-1 | 9.0 | 1280 x 720 | 212 x 127.50 x 7.90 | 198.72 x 111.78 | Full | 4-lane LVDS | 1000 | 1000 | -30...+85 | öffnen | |||
| AM-1280800W2TZQW-00H | 10.1 | 1280 x 800 | 231.0 x 154.4 x 5.3 | 216.96 x 135.6 | Full | LVDS | 1000 | 800 | -20...+70 | öffnen | |||
| AM-1280800WGTZQW-00H | 10.1 | 1280 x 800 | 231.0 x 154.4 x 5.3 | 216.96 x 135.6 | Full | LVDS | 1500 | 800 | -20...+70 | öffnen | |||
| AM-1280800WPTZQW-T02H | 10.1 | 1280 x 800 | 231.0 x 154.4 x 5.3 | 216.96 x 135.6 | Full | LVDS | 850 | 800 | -20...+70 | PCAP | ILI2511 | USB | öffnen |
| AM-1280800WPTZQW-T04H | 10.1 | 1280 x 800 | 231.0 x 154.4 x 5.3 | 216.96 x 135.6 | Full | LVDS | 850 | 800 | -20...+70 | PCAP | ILI2511 | USB | öffnen |
| AM-1280800WPTZQW-TH0H | 10.1 | 1280 x 800 | 248.76 x 168.73 x 24.13 | 216.96 x 135.6 | Full | HDMI | 850 | 800 | -20...+70 | PCAP | ILI2511 | USB | öffnen |
| AM-19201200H5TZQW-00H | 10.1 | 1920 x 1200 | 229.46 x 149.1 x 8.75 | 216.8 x 135.5 | Full | LVDS | 500 | 900 | -20...+70 | öffnen | |||
| AM-800600LTNQW-U6H-B | 10.4 | 800 x 600 | 236.0 x 176.9 x 21.2 | 211.2 x 158.4 | 6 o'clock | UART, RS232, USB | 400 | 400 | -20...+70 | UART, RS232 | öffnen | ||
| AM-1024768Y7TZQW-TABH | 10.4 | 1024 x 768 | 225.8 x 174.3 x 5.6 | 211.2 x 158.4 | Full | LVDS | 510 | 900 | -20...+70 | PCAP | EXC3147 | USB | öffnen |
| AM-1280800Q9TZQW-T41H | 12.1 | 1280 x 800 | 278.0 x 184.0 x 10.4 | 261.1 x 163.2 | Full | LVDS | 1020 | 1000 | -30...+85 | PCAP | EXC80W46 | USB | öffnen |
| AM-1280800Q9TZQW-T45H | 12.1 | 1280 x 800 | 278.0 x 184.0 x 10.4 | 261.12 x 163.2 | Full | HDMI | 1020 | 1000 | -30 ...85 | PCAP | EXC80W46 | USB | öffnen |
| AM-1920720B4TZQW-00H | 12.3 | 1920 x 720 | 308.1 x 130.0 x 7.6 | 292.032 x 109.512 | Full | LVDS | 850 | 1100 | -30...+85 | öffnen | |||
| MACH-12.8-19201080-AWMN-003 | 12.8 | 1920 x 1080 | 299.8 x 179 x 7.35 | 283.39 x 159.41 | Full | LVDS | 600 | 1000 | -30...+85 | öffnen | |||
| AM-19201080D1TZQW-TA8H | 15.6 | 1920 x 1080 | 363.8 x 215.9 x 9.3 | 344.16 x 193.59 | Full | LVDS | 850 | 800 | ILI2510 | USB | öffnen | ||
| AM-19201080MTZQW-T50 | 21.5 | 1920 x 1080 | 497.6 x 292.2 x 10.5 | 476.064 x 267.786 | Full | LVDS | 298 | 1000 | 0...+50 | PCAP | ILI2510 | USB | öffnen |
| Bezeichnung | Size (inch) | Resolution | TFT Outline dimension (mm) | Active Area (mm) | Viewing Area (mm) | Interface | Brightness (nits) | Contrast | Top (°C) | Touch Screen | Touch IC Part No | Touch Interface | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MACHT013240240-A2WMN-001 | 1.3 | 240 x 240 | 35.6 x 38.1 x 1.56 | 32.4 x 32.4 | RGB + 3 line SPI | 540 | 1100 | -20...+70 | öffnen | ||||
| MACHT013240240-A2WMN-004 | 1.3 | 240 x 240 | 43.8 x 43.8 x 2.44 | 32.4 x 32.4 | 4-wire 8-bit interface I | 300 | 1100 | -20...+80 | nur Coverlens mit Black OCA | öffnen | |||
| MACHT021480480-A0WMN-001 FS | 2.1 | 480 x 480 | 56.08 x 60.36 x 2.26 | 53.28 x 53.28 | RGB + 3 wire SPI | 280 | 1000 | -20...+70 | öffnen | ||||
| MACH-3.54-800640-AWMN-01 FS | 3.54 | 800 x 640 | 97.7 x 83.89 x 4.1 | 90 x 72 | 24bit RGB + SPI | 1200 | 1200 | -30...+85 | öffnen | ||||
| MACH-5.0-1080180-AWMN-01 FS | 5.0 | 1080 x 1080 | 132.208 x 136.531 x 1.98 | 127.008 x 127.008 | MIPI | 400 | 1500 | -20...+60 | öffnen |
| Bezeichnung | Size (inch) | Resolution | OLED Outline Dimension (mm) | Active Area (mm) | View Direction | Interface | Brightness (nits) | Contrast | Top (°C) | Touch Screen | Touch IC Part No | Touch Interface | Remarks | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MACHWEO012832DWPP3N | 0.91 | 128 x 32 | 30.0 x 11.5 x 1.26 | 22.384 x 5.584 | Full | 4-wire SPI | 150 | 10'000 | -40...80 | - | - | - | - | öffnen |
| MACHWEO128128AWAP3N | 1.5 | 128 x 128 | 33.80 x 36.50 x 2.05 | 26.86 x 26.86 | Full | 6800, 8080, SPI, I2C | 100 | 2000 | -40...+80 | öffnen | ||||
| MACHWEO160128AWPP2N | 1.92 | 160 x 128 | 34.5 x 48.8 x 1.41 | 28.908 x 39.34 | Full | 6800, 8080, SPI, I2C | 100 | 10'000 | -40...+80 | öffnen | ||||
| MACHWEX025664BLAP3N | 3.12 | 256 x 64 | 88.0 x 27.8 x 2.05 | 76.778 x 19.178 | Full | 6800, 8080, SPI | 120 | 2000 | -40...+70 | öffnen |
| Bezeichnung | Size (inch) | Resolution | Outline Dimension (mm) | Active Area (mm) | View Direction | Interface | Control Board | Brightness (nits) | Contrast | Top (°C) | Touch Screen | Touch IC Part No | Touch Interface | Power Supply | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MACHITL101 | 10.1 | 1280 x 800 | 249.50 x 168.37 x 29.0 | 216.96 x 135.6 | Full | VGA, DVI, HDMI | Yes | 301 | 800 | 0...+40 | PCAP | Ilitek | USB | 12 VDC (AC 100V-240V) | öffnen |
| MACHITL121 | 12.1 | 1024 x 768 | 293.0 x 33.6 x 223.0 | 245.7 x 184.3 | Full | VGA, DVI, HDMI | Yes | 430 | 1000 | 0...+40 | PCAP | Ilitek | USB | 12 VDC (AC 100V-240V) | öffnen |
| MACHITL150 | 15.0 | 1024 x 768 | 348.4 x 272.4 x 42.0 | 304.128 x 228.096 | Full | VGA, DVI | Yes | 258 | 700 | 0...+40 | PCAP | Ilitek | USB | 12 VDC (AC 100V-240V) | öffnen |

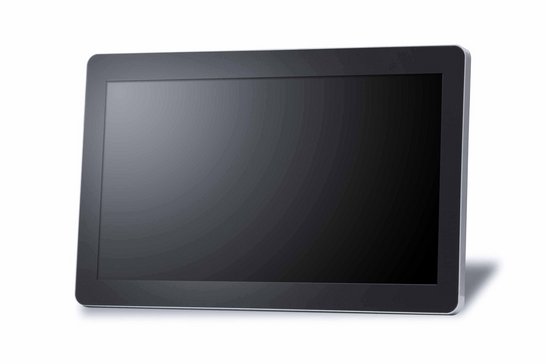

| MACHITL156 | 15.6 | 1920 x 1080 | 388.2 x 245.5 x 36.5 | 344.16 x 193.59 | Full | VGA, DVI, HDMI | Yes | 425 | 800 | 0...+40 | PCAP | Ilitek | USB | 12 VDC (AC 100V-240V) | öffnen |
| MACHITL170 | 17.0 | 1280 x 1024 | 384.17 x 316.59 x 39.5 | 337.920 x 270.336 | Full | VGA, DVI | Yes | 301 | 1000 | 0...+40 | PCAP | Ilitek | USB | 12 VDC (AC 100V-240V | öffnen |
| MACHITL185 | 18.5 | 1920 x 1080 | 453.84 x 286.44 x 40 | 409.80 x 230.40 | Full | VGA, DVI | Yes | 430 | 1000 | 0...+40 | PCAP | Ilitek | USB | 24 VDC (AC 100V-240V) | öffnen |
| MACHITL190 | 19.0 | 1280 x 1024 | 435.80 x 363.50 x 41.0 | 376.32 x 301.06 | Full | VGA, DVI | Yes | 215 | 1000 | 0...+40 | PCAP | Ilitek | USB | 12 VDC (AC 100V-240V) | öffnen |
| MACHITL215 | 21.5 | 1920 x 1080 | 526.01 x 317.61 x 40.8 | 477.0 x 269.0 | Full | VGA, DVI, HDMI | Yes | 430 | 3000 | 0 ...+40 | PCAP | Ilitek | USB | 24 VDC (AC 100V-240V) | öffnen |
| MACHITL236 | 23.6 | 1920 x 1080 | 572.49 x 41.05 x 343.49 | 521.28 x 293.22 | Full | VGA, DVI, HDMI | Yes | 258 | 1000 | 0...+40 | PCAP | Ilitek | USB | 12 VDC (AC 100V-240V) | öffnen |

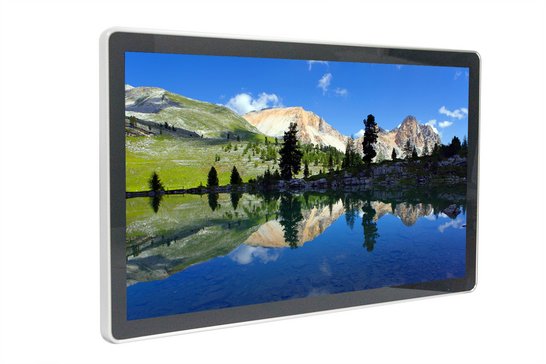

| MACHIDS320 | 32.0 | 1920 x 1080 | 757.5 x 451.5 x 78.5 | 698.4 x 392.85 | Full | VGA, HDMI | Yes | 387 | 3000 | 0...+40 | PCAP | Ilitek | USB | 12 VDC (AC 100V-240V) | öffnen |
| MACHIDS430 | 43.0 | 3840 x 2160 | 1001.2 x 75.7 x 589.4 | 953.0 x 543.0 | Full | VGA, HDMI | Yes | 258 | 1200 | 0...+40 | PCAP | Ilitek | USB | 12 VDC (AC 100V-240V) | öffnen |
| Bezeichnung | Size (inch) | Resolution | E-Paper Outline Dimension (mm) | Active Area (mm) | Standby Power (mW) | Technology | Grayscale | Interface | Full Refresh (s) | Partial Refresh (s) | Top (°C) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MACHGDEW0102T4 | 1.02 | 128 x 80 | 32.57 x 18.6 x 0.98 | 21.76 x 14 | 0.0165 | B/W | 2 | SPI | 3 | 0.3 | 0...50 | |

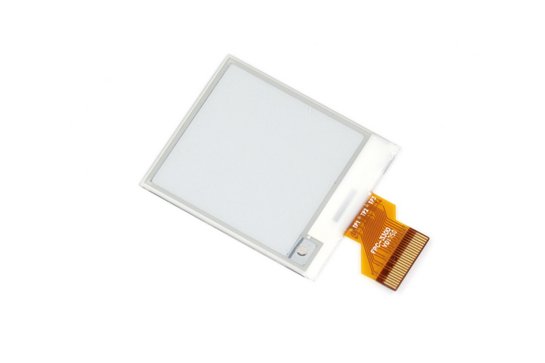

| MACHGDEH0154D67 | 1.54 | 200 x 200 | 37.32 x 31.80 x 1.05 | 27 x 27 | 0.006 | B/W | 4 | SPI | 2 | 0.26 | 0...50 | öffnen |
| MACHGDEH0154Z90 | 1.54 | 200 x 200 | 37.32 x 31.80 x 0.9 | 27 x 27 | 0.0099 | B/W/R | 2 | SPI | 15 | 0...40 | ||
| MACHGDEM0154C90 | 1.54 | 152 x 152 | 31.8 x 37.32 x 1.0 | 27.512 x 27.512 | 0.003 | B/W/Y | 2 | SPI | 30 | 0...40 | ||
| MACHGDEM0154D67 | 1.54 | 200 x 200 | 31.8 x 37.32 x 1.0 | 27 x 27 | 0.003 | B/W | 4 | SPI | 2 | 0.26 | 0...50 | |
| MACHGDEW0154M09 | 1.54 | 200 x 200 | 31.8 x 37.32 x 0.98 | 27.6 x 27.6 | 0.0165 | B/W | 2 | SPI | 0.82 | 0.3 | 0...50 | |
| MACHGDEW0154M10 | 1.54 | 152 x 152 | 31.8 x 37.32 x 1.02 | 27.512 x 27.512 | 0.0165 | B/W | 2 | SPI | 3 | -20...60 | ||
| MACHGDEM0213B74 | 2.13 | 250 x 122 | 29.2 x 29.2 x 1.0 | 48.55 x 23.7 | 0.003 | B/W | 4 | SPI | 3 | 0.4 | 0...50 | |
| MACHGDEM0213C90 | 2.13 | 250 x 122 | 59.2 x 29.2 x 1.0 | 48.55 x 23.70 | 0.003 | B/W/Y | 2 | SPI | 30 | 0...40 | ||
| MACHGDEW0213M21 | 2.13 | 212 x 104 | 59.2 x 29.2 x 1.02 | 48.548 x 23.712 | 0.0165 | B/W | 2 | SPI | 3 | -20...60 | ||
| MACHGDEY0213Z98 | 2.13 | 250 x 122 | 59.2 x 29.2 x 1.0 | 48.55 x 23.7046 | 0.003 | B/W/R | 2 | SPI | 14 | 0...40 | ||
| MACHGDEM029C90 | 2.9 | 296 x 128 | 79.0 x 36.7 x 1.2 | 66.9 x 29.06 | 0.003 | B/W/Y | 2 | SPI | 30 | 0...40 | ||
| MACHGDEM029E97 | 2.9 | 296 x 128 | 79.0 x 36.7 x 1.2 | 66.9 x 29.06 | B/W | 2 | SPI | 3 | 0...50 | |||
| MACHGDEM029T94 | 2.9 | 296 x 128 | 79 x 36.7 x 1.2 | 66.9 x 29.06 | 0.0033 | B/W | 4 | SPI | 3 | 0.3 | 0...50 | |
| MACHGDEW029M06 | 2.9 | 296 x 128 | 79 x 36.7 x 1.22 | 66.896 x 29.056 | 0.0165 | B/W | 2 | SPI | 3 | -20...60 | ||
| MACHGDEW029T5D | 2.9 | 296 x 128 | 79 x 36.7 x 1.18 | 66.9 x 29.06 | 0.0165 | B/W | 4 | SPI | 3 | 0.3 | 0...50 | |
| MACHGDEW029Z13 | 2.9 | 296 x 128 | 79 x 36.7 x 1.18 | 66.9 x 29.06 | 0.0165 | B/W/R | 2 | SPI | 12 | 0...40 | ||
| MACHGDEW0371W7 | 3.71 | 416 x 240 | 92.99 x 53 x 1.18 | 81.536 x 47.04 | 0.09 | B/W | 2 | SPI | 4 | 0...50 | ||
| MACHGDE043A2 | 4.3 | 800 x 600 | 104 x 74.6 x 1.24 | 88 x 66 | 0.4 | B/W | 16 | Parallel | 1 | 1 | 0...50 | |
| MACHGDEW0583T8 | 5.83 | 648 x 480 | 125.4 x 99.5 x 1.18 | 119.232 x 88.32 | 0.0165 | B/W | 2 | SPI | 4 | 0...50 | ||
| MACHGDEY075T7 | 7.5 | 800x480 | 170.20 x 111.20 x 1.25 | 163.20 x 97.92 | 0.0165 | B/W | 4 | SPI | 3 | 0...50 |
