Electromechanic Components Connectors, Switches and Encoders

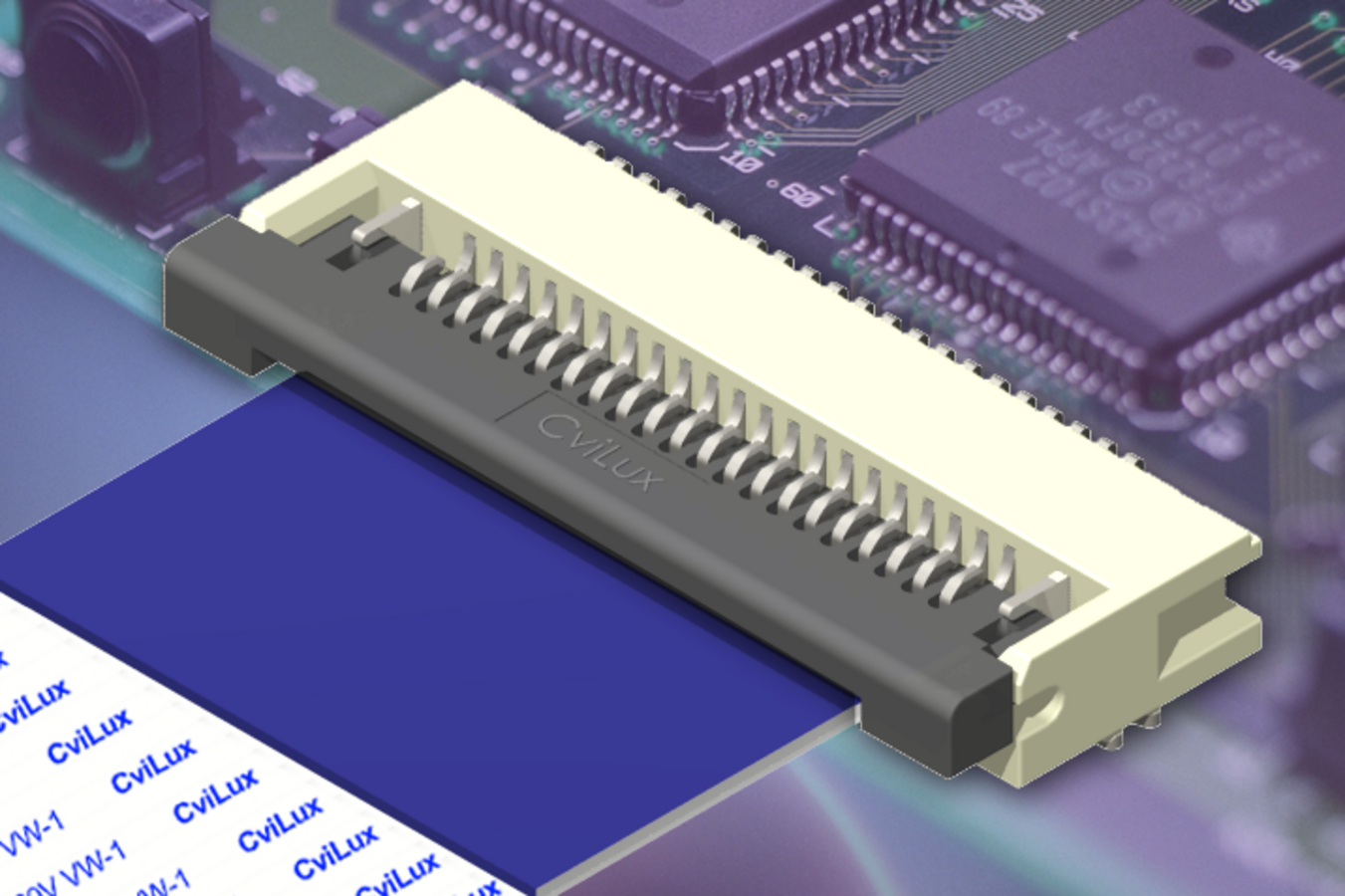

We can offer a wide range of connectors from Cvilux, and the option of push buttons and encoders from our trusted partners in the Far East.

Just send us your request, and we’ll rise to the challenge!

Contact

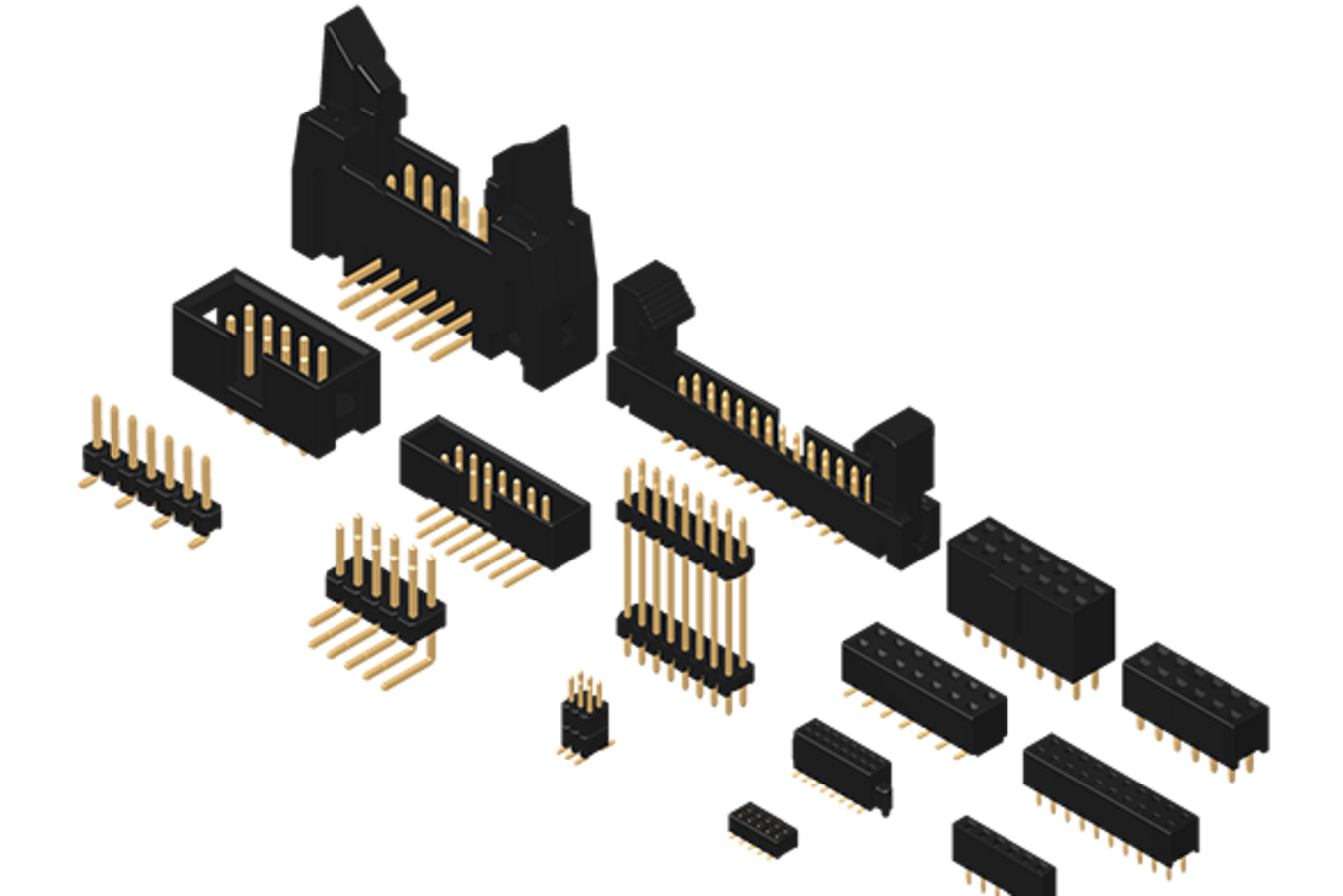

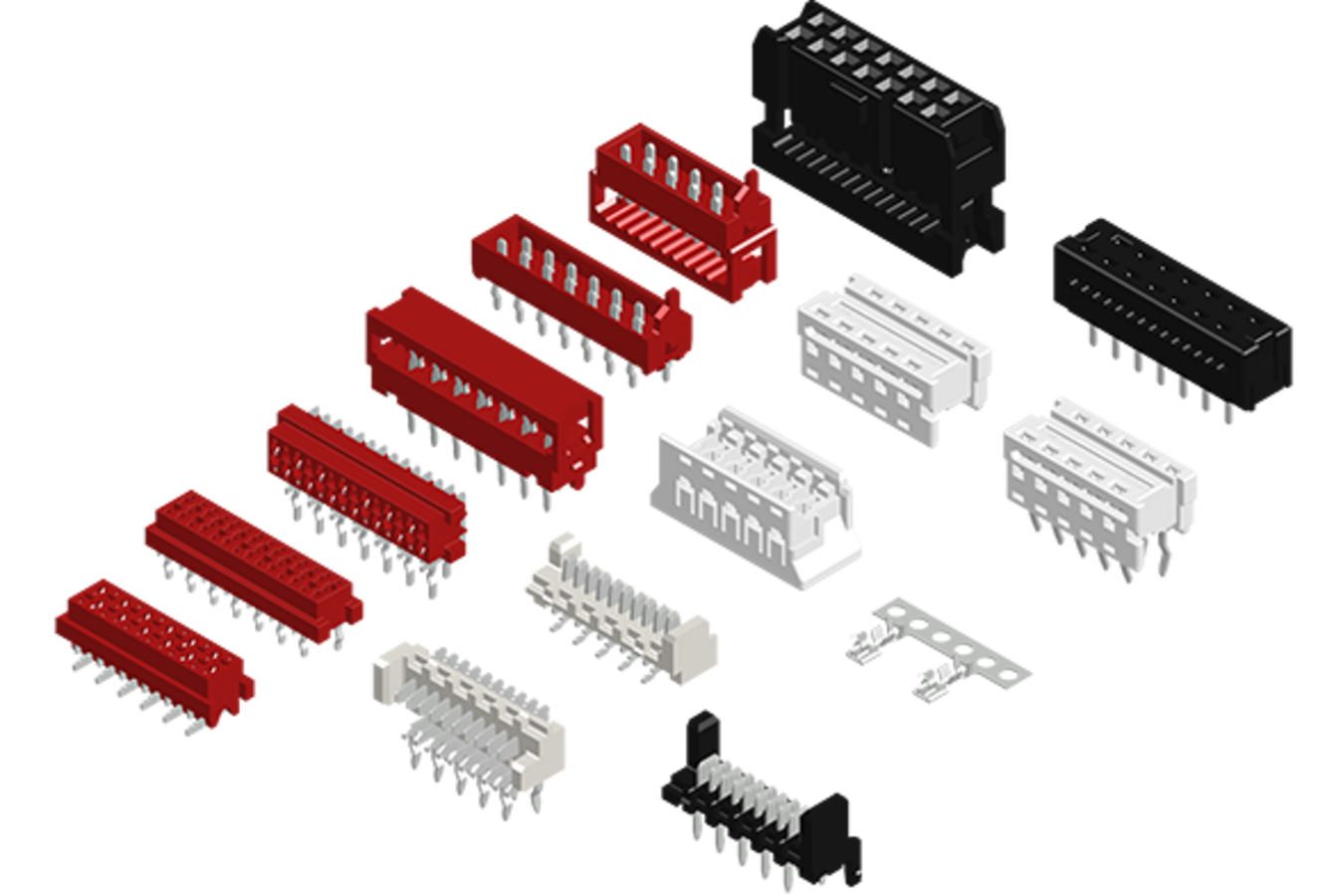

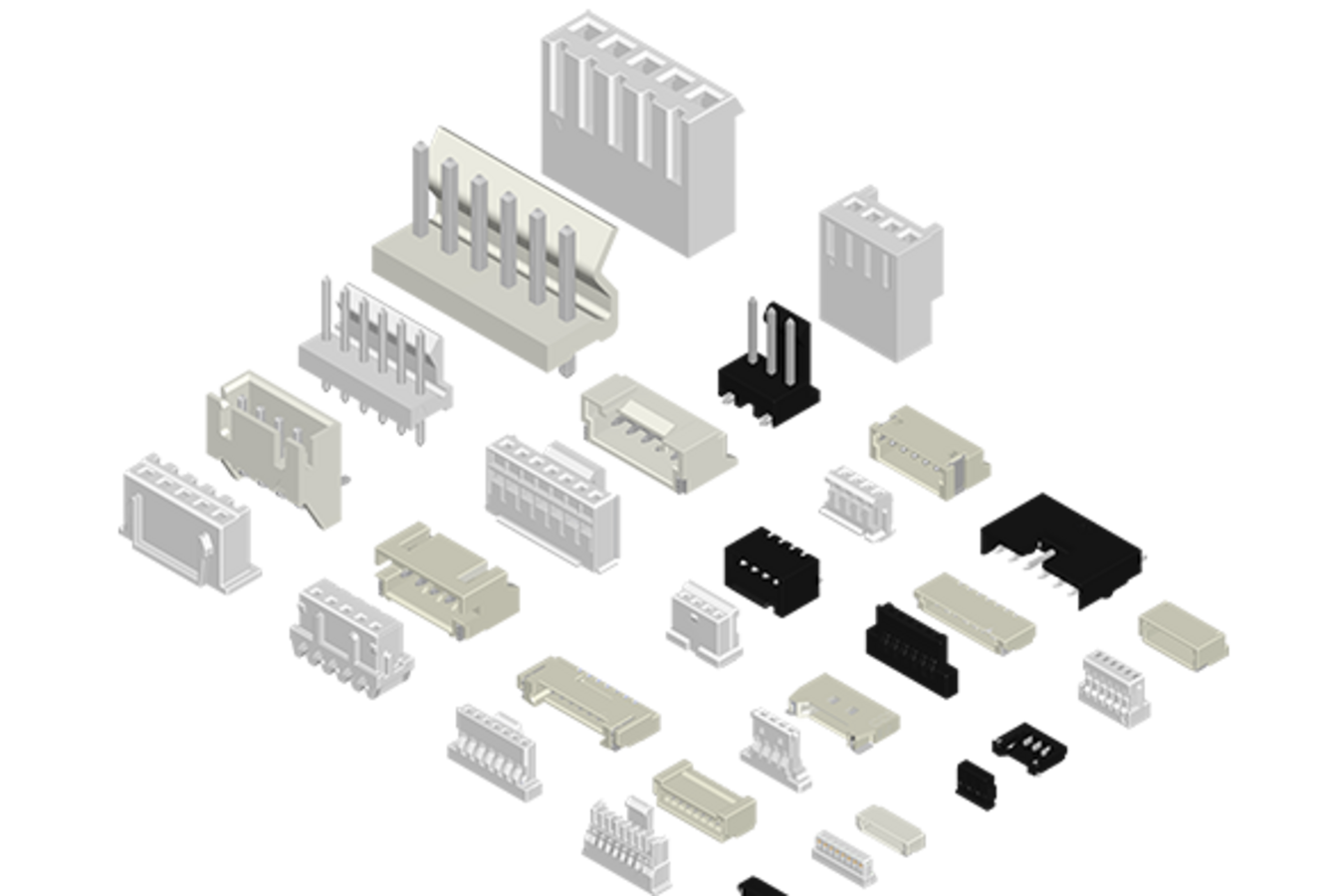

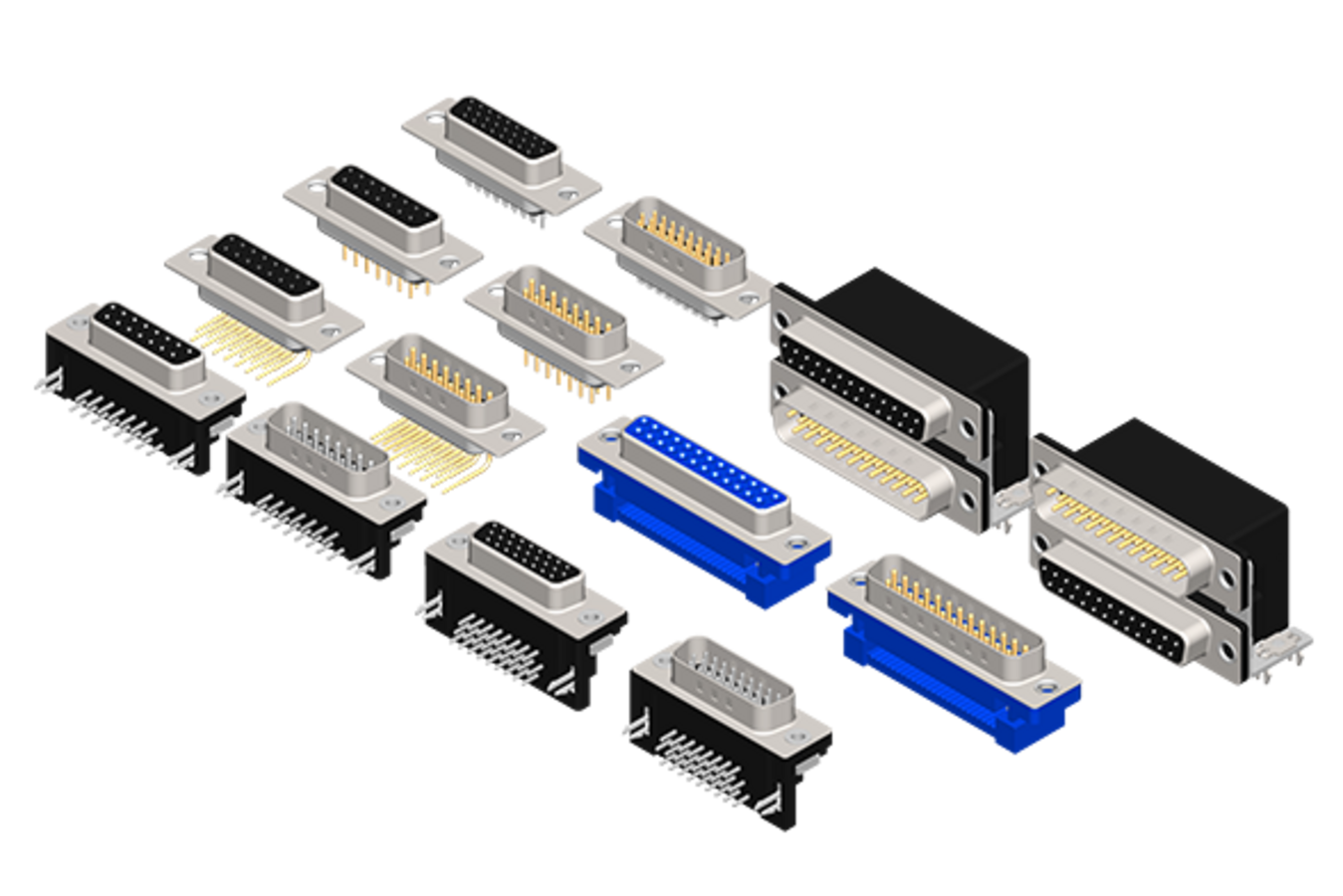

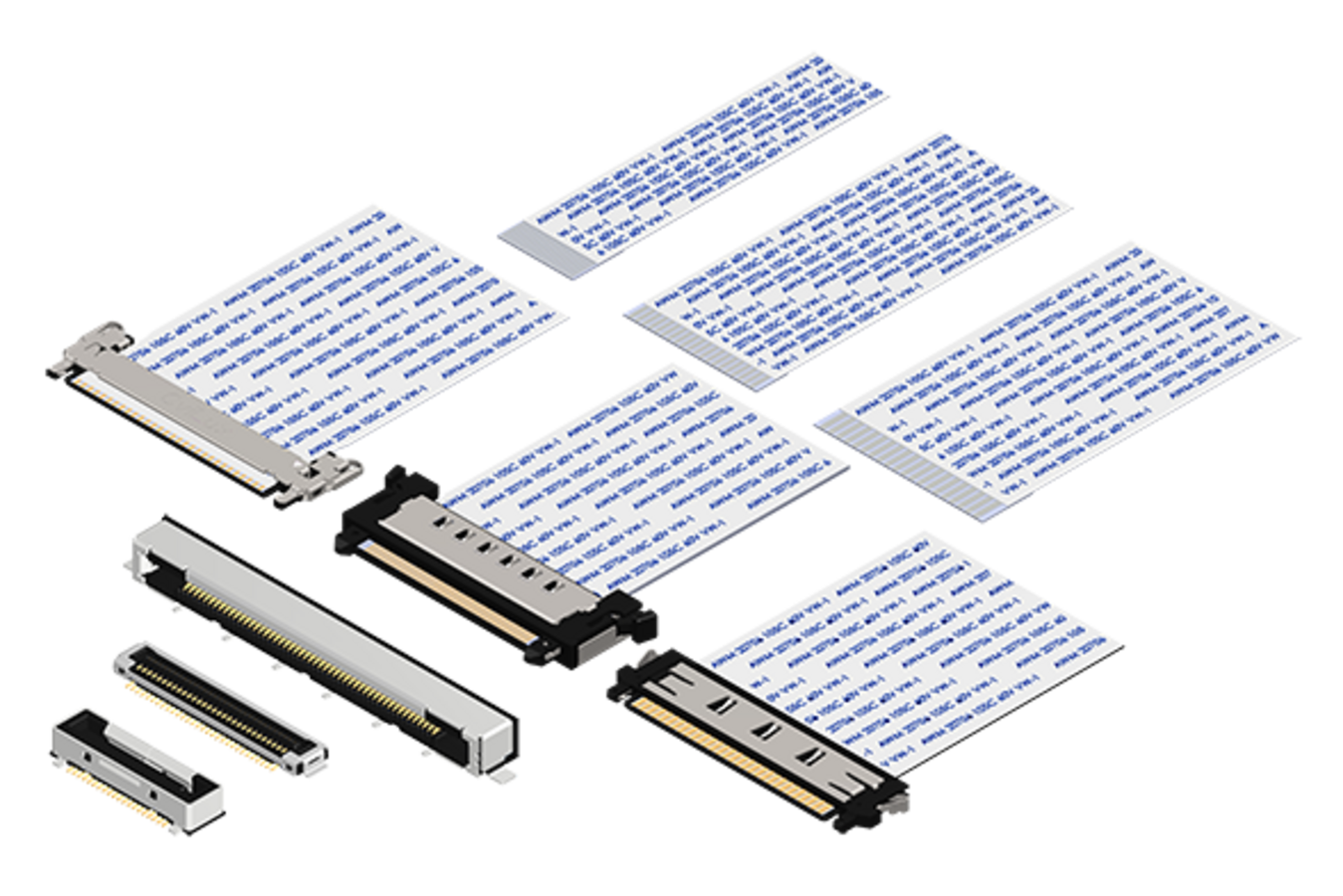

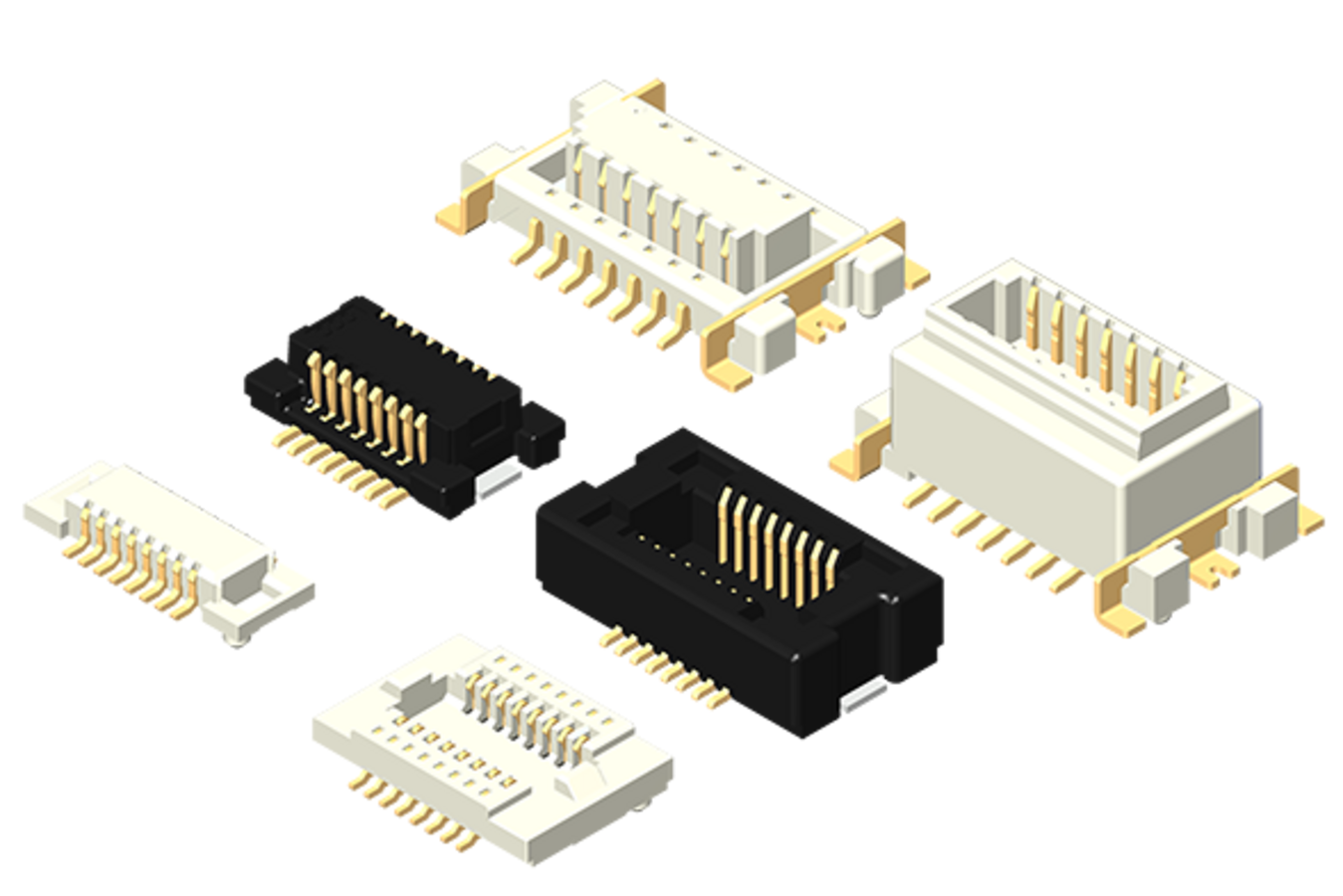

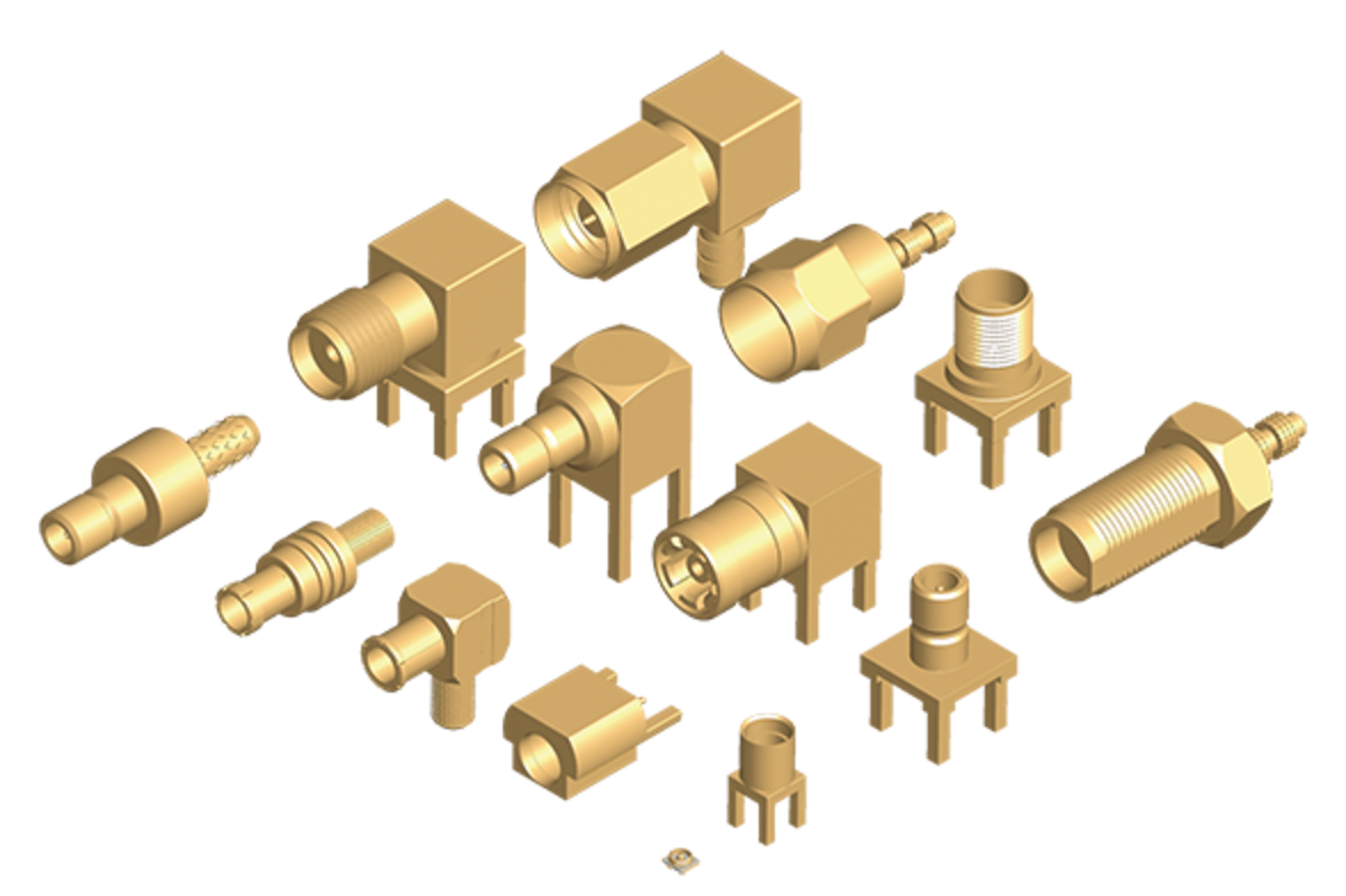

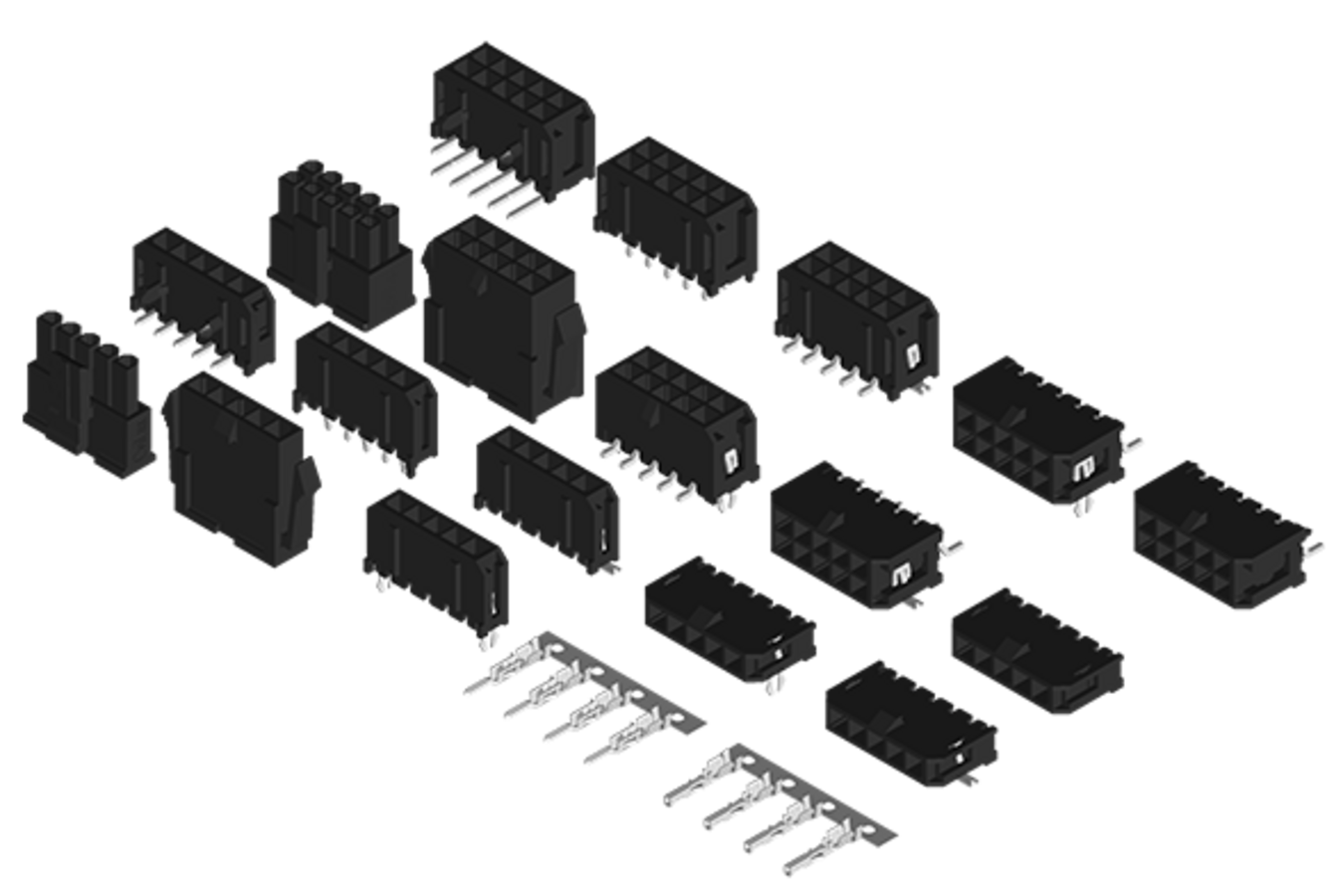

A selection of our connector families

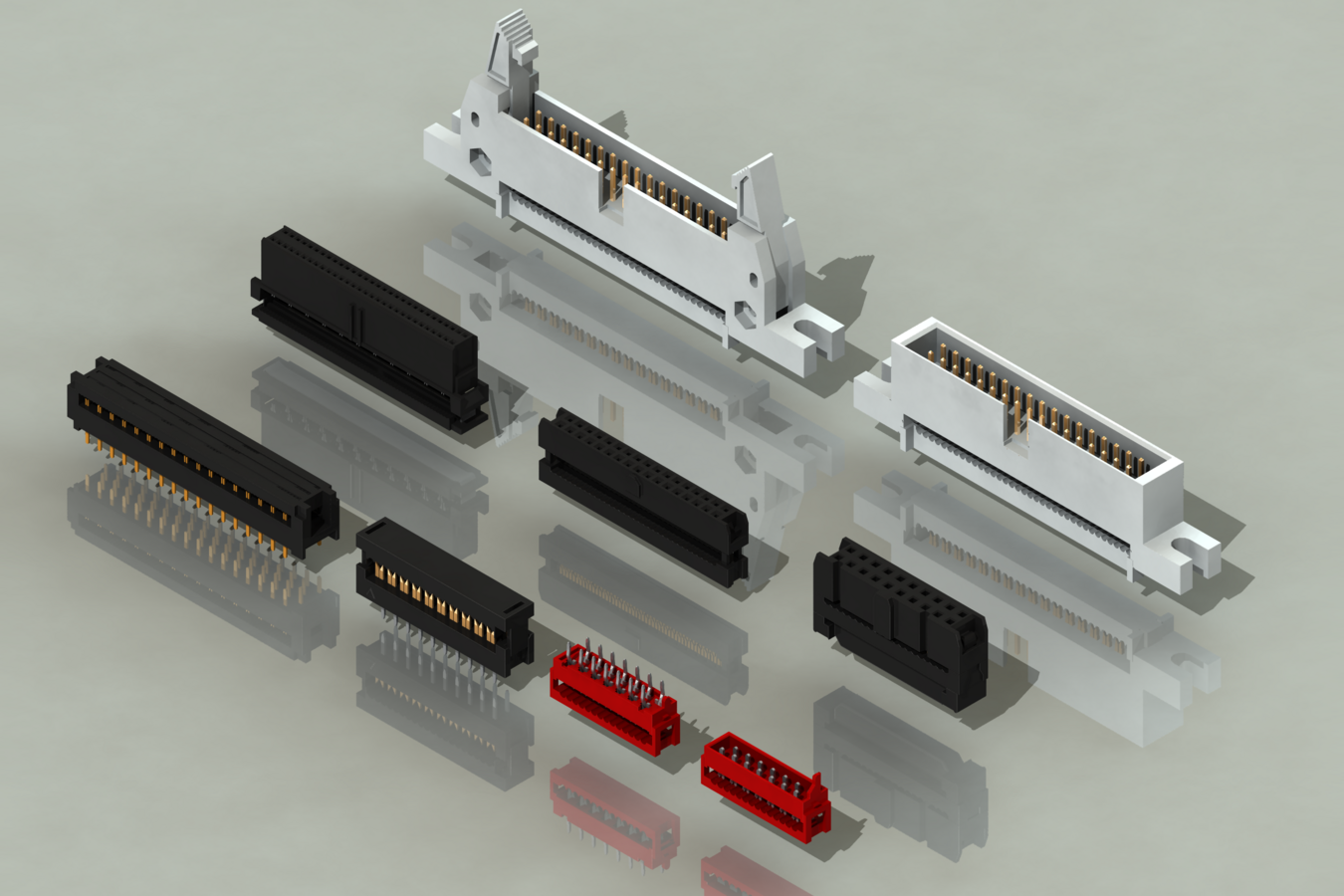

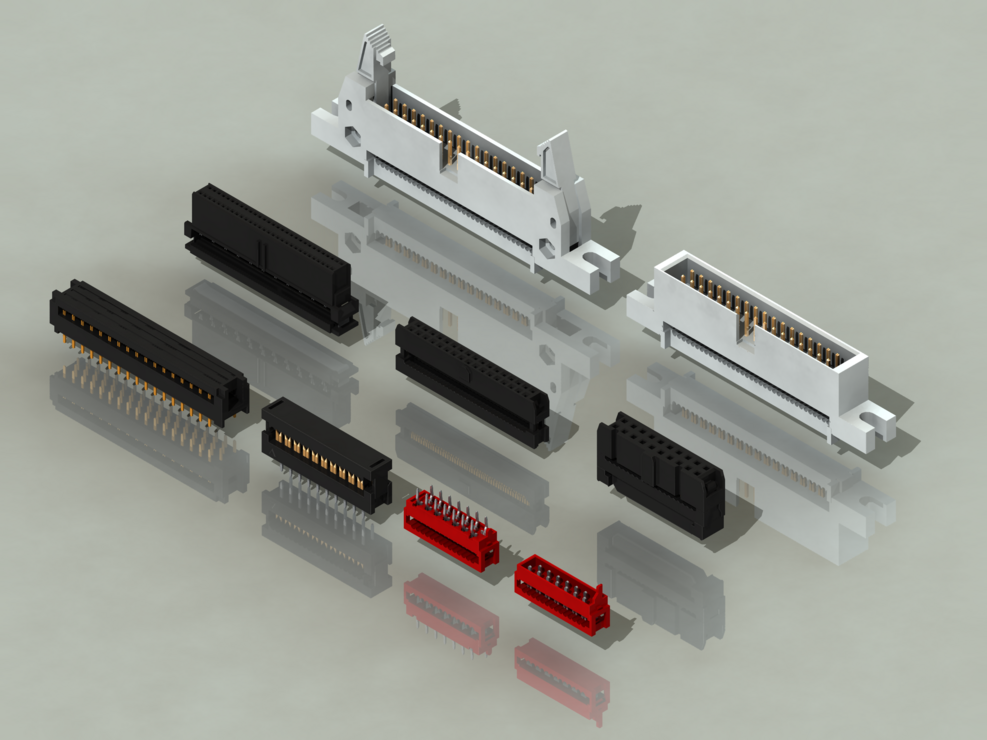

Ribbon Cable Connectors
Connector Gallery

Highlights from our display range Standard Displays

We have a large number of standard displays at your disposal.  Browse the products and make your selection by using the most important criterias.

This list only highlights a small selection from our standard range. Don’t see your preferred display in the list? Don’t hesitate to contact us for more information.

Contact

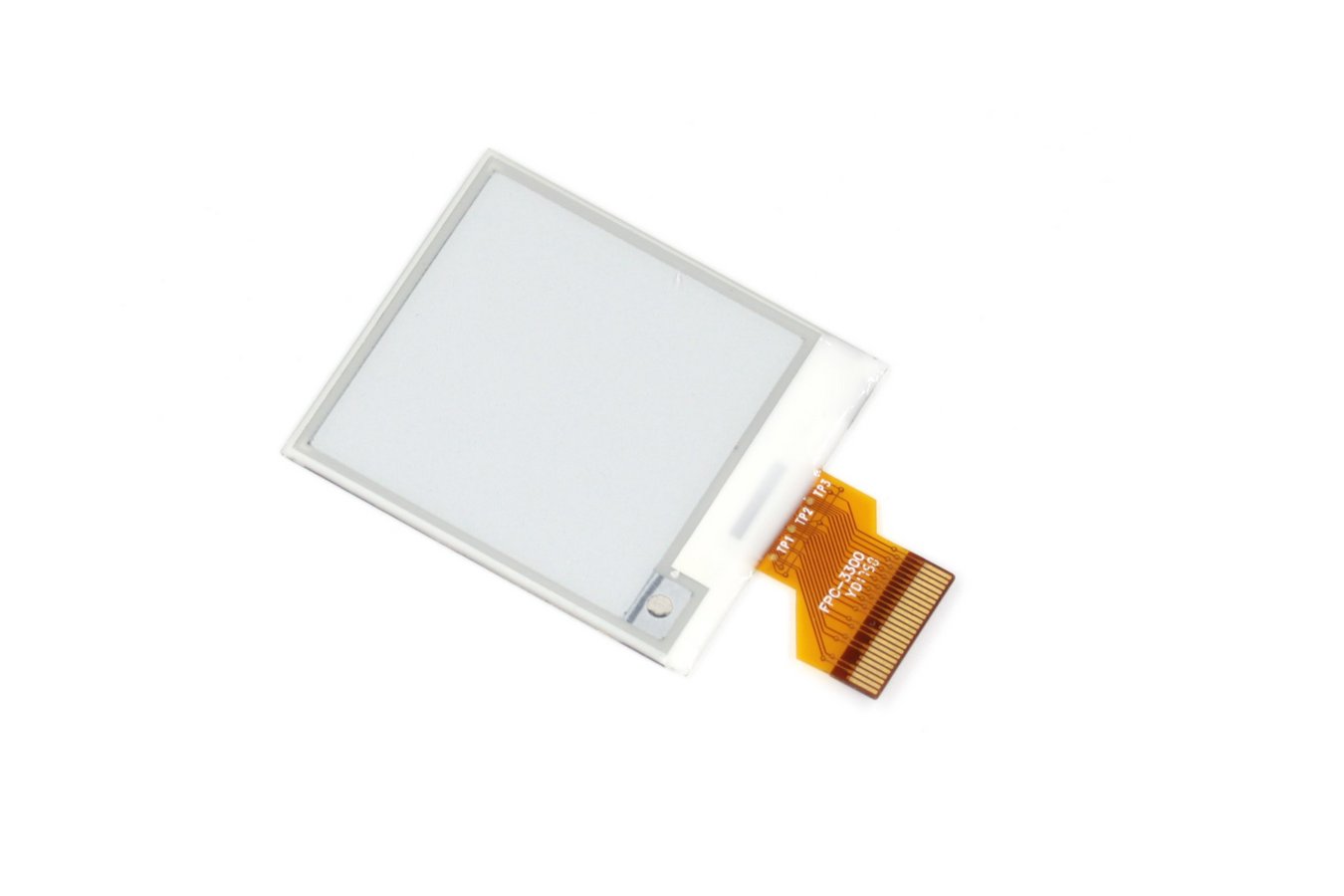

1.54" E-Paper B/W
1.54" E-Paper B/W

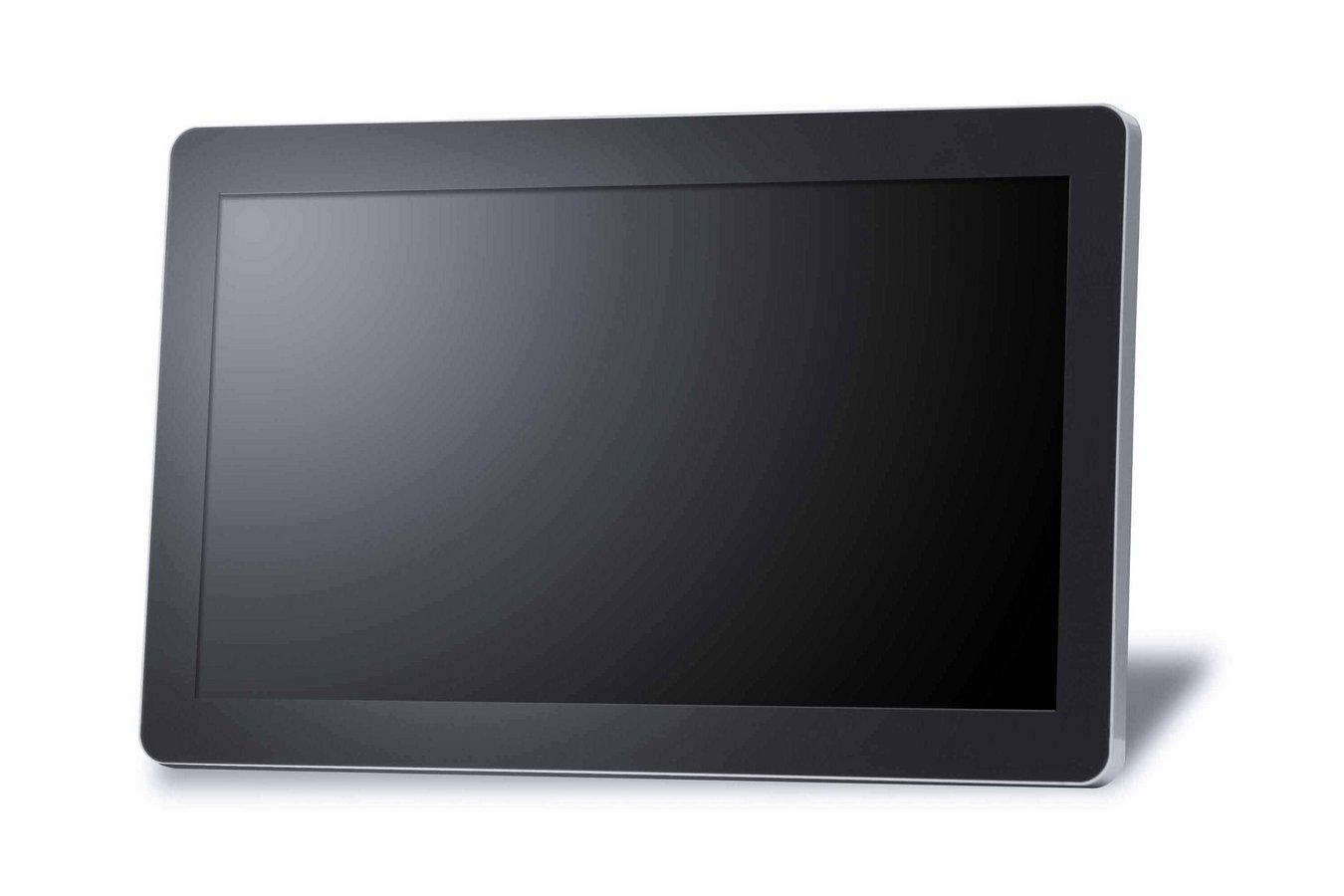

15.6" Touch Monitor
15.6" Touch Monitor
32.0" Touch Monitor
32.0" Touch Monitor
2.8" IPS TFT
2.8" IPS TFT

Product Groups

Standard TFT

TFT and TFT with touch screen

Grabbling Hand
Name Size (inch) Resolution TFT Outline Dimension (mm) Active Area (mm) Viewing Direction Interface Brightness (nits) Contrast Top (°C) Touch Screen Touch IC Part No Touch Interface
MACHMI0154BT-3 1.54 240 x 240 31.52 x 33.95 x 1.75 27.72 x 27.72 Full 4-wire SPI 600 800 -20...+70 open
MACHMI0200ACT-2 2.0 320 x 240 46.10 x 40.96 x 2.53 40.80 x 30.60 Full MCU interface 450 1000 -30...+85 open
MACHMI0200ZT-3 2.0 240 x 320 34.60 x 47.80 x 2.05 30.60 x 40.80 Full 8-bit 8080 MCU, 4-wire SPI 400 800 -20...+70 open
MACHMI0283AAT-7 2.8 240 x 320 50.50 x 69.70 x 2.60 43.20 x 57.60 Full SPI, MCU, RGB 500 800 -20...+70 open
MACHMI0283AHT-2 2.8 480 x 640 45.90 x 64.90 x 1.51 43.20 x 57.60 Full 2-lane MIPI 200 1500 -20...+70 open
MACHJ029HXNN0101N 2.9 376 x 960 31.2 x 76.603 x 2.11 67.68 x 26.508 Full 2-lane Mipi 200 1500 -20...+70 open
MACHMI0350ADT-5 3.5 320 x 240 76.90 x 63.90 x 3.10 70.08 x 52.56 12:00 (gray scale 6:00) parallel CPU, RGB, serial 3-wire, 4-wire 450 400 -20...+70 open
MACHMI0350AUT-2 3.5 320 x 240 76.90 x 63.9 x 3.20 70.08 x 52.56 Full RGB 550 300 -30...+85 open
MACHMI0350BAT-1 3.5 640 x 480 76.90 x 63.90 x 3.20 70.08 x 52.56 Full 3-wire SPI + 24 RGB 450 800 -20...+70 open
AM-480272H3TMQW-TU0H 4.3 480 x 272 105.5 x 81.0 x 20.56 95.04 x 53.865 12 o'clock UART, RS232, USB 320 250 -20...+70 PCAP UART, RS232 open
AM-480272MGTZQW-T50H 4.3 480 x 272 105.5 x 76.1 x 2.9 95.04 x 53.856 Full RGB 425 800 -20...+70 PCAP ILI2117A I2C open
AM-480272MGTZQW-T74H 4.3 480 x 272 105.5 x 67.2 x 2.9 95.04 x 53.856 Full RGB 425 800 -30...+70 PCAP ST1624N32C I2C open
AM-800480BDTZQW-01H 4.3 800 x 480 105.3 x 67.0 x 2.8 95.04 x 53.856 Full RGB 700 -30...+85 open
AM-800480BDTZQW-51H 4.3 800 x 480 105.3 x 67.0 x 2.8 95.04 x 53.856 Full RGB 1100 700 -30...+80 open
AM-800480N3TZQW-30H 5.0 800 x 480 118.5 x 77.1 x 3.16 108.0 x 64.8 Full LVDS 500 1000 -30...+85 open
AM-800480N3TZQW-50H 5.0 800 x 480 119.7 x 78.3 x 5.8 108.0 x 64.8 Full RGB 1000 1000 -30...+85 open
AM-800480N9TZQW-T26H 5.0 800 x 480 118.5 x 77.1 x 3.16 108.0 x 64.8 Full HDMI 425 1000 -30...+85 PCAP ILI2511 USB open
AM-800480NATZQW-00H 5.0 800 x 480 118.5 x 77.1 x 3.16 108.0 x 64.8 Full RGB 500 1000 -20...+70 open
AM-800480NBTZQW-T01H 5.0 800 x 480 118.5 x 66.4 x 3.16 108.0 x 64.8 Full RGB 425 1000 -20...+70 PCAP ILI2511 I2C open
MACHMI0500AHT-3 5.0 800 x 480 120.7 x 75.80 x 3.10 108.0 x 64.80 Full RGB 600 800 -30...+85 open
AM-640480VTZQW-00H 5.7 640 x 480 127.0 x 98.43 x 5.8 115.2 x 86.4 Full RGB 500 1200 -20...+70 open
AM-640480VTZQW-U0H-A 5.7 640 x 480 144.0 x 109.5 x 23.2 115.2 x 96.4 Full UART, RS232, USB 500 1200 -20...+70 open
MACHMI0686BT-1 6.86 480 x 1280 66.70 x 181 x 4.70 60.22 x 160.59 Full 2-, 4-lane MIPI 600 1500 -20...+70 open
MACHMI0686BT-1CP 6.86 480 x 1280 66.70 x 181 x 4.70 60.22 x 160.59 Full 4-lane MIPI 500 1500 -20...+70 PCAP GT911 I2C open
AM-800480AYTZQW-TARH 7.0 800 x 480 184.0 x 128.0 x 12.8 154.08 x 85.92 Full LVDS 470 900 -20...+70 PCAP EXC80W32 I2C open
AM-800480AYTZQW-TBRH 7.0 800 x 480 164.9 x 100 x 8.45 154.08 x 85.92 Full RGB 470 900 -20...+70 PCAP ILI2511 I2C open
AM-800480BTMQW-TG0H 7.0 800 x 480 164.9 x 100.0 x 5.7 153.6 x 86.64 6 o'clock LVDS 425 500 -20...+70 PCAP EXC3132 I2C open
AM-800480CTZQW-B6H-A 7.0 800 x 480 165.0 x 104.44 x 11.31 152.4 x 91.44 Full RGB 1500 1000 -30...+85 open
AM-1024600ATMQW-H0H 7.0 1024 x 600 164.0 x 100.0 x 21.3 153.6 x 86.64 6 o'clock HDMI 500 700 -20...+70 open
AM-1024600DTZQW-A0H 7.0 1024 x 600 164.9 x 100.0 x 9.65 154.2144 x 85.92 Full LVDS 500 800 -20...+70 open
AM-1024600DTZQW-H0H-A 7.0 1024 x 600 164.9 x 100.0 x 21.3 154.2144 x 85.92 Full HDMI 500 800 -20...+70 open
AM-1024600DTZQW-H6H-B 7.0 1024 x 600 164.9 x 100.0 x 21.3 154.2144 x 85.92 Full HDMI 1000 800 -20...+70°C open
AM-1024600DTZQW-TAYH 7.0 1024 x 600 164.9 x 100.0 x 9.65 154.2144 x 86.80 Full LVDS 425 800 -20...+70 PCAP EXC3132 USB open
AM-1024600DTZQW-TH6H 7.0 1024 x 600 164.9 x 100 x 23.75 154.2144 x 85.92 Full HDMI 850 800 -20...+70 PCAP EETI3132 USB open
AM-1024600DTZQW-THNH-A 7.0 1024 x 600 164.9 x 100.0 x 10.3 154.2144 x 85.92 Full HDMI 850 800 -20...+70 PCAP EXC80W32 USB open
AM-1024600DTZQW-THTH-B 7.0 1024 x 600 164.9 x 100 x 10.3 154.2144 x 85.92 Full HDMI 425 800 -20...+70 PCAP EXC80W32 USB open
AM-1280800P2TZQW-00H 7.0 1280 x 800 162.3 x 107.9 x 9.95 149.76 x 93.6 Full LVDS 500 800 -20...+70 PCAP LVDS open
AM-1280800P2TZQW-H1H 7.0 1280 x 800 162.3 x 107.9 x 21.6 149.76 x 93.6 Full HDMI 500 800 -20...+70 open
AM-1280800P2TZQW-T05H 7.0 1280 x 800 162.3 x 107.9 x 13.80 149.76 x 93.6 Full LVDS 400 800 -20...+70 PCAP EXC3132 USB open
AM-1280800P2TZQW-THAH 7.0 1280 x 800 162.3 x 107.9 x 13.80 149.76 x 93.6 Full HDMI 400 800 -20...+70 PCAP EXC80W32 USB open
AM-1280800P3TZQW-H1H 7.0 1280 x 800 162.3 x 107.9 x 21.6 149.76 x 93.6 Full HDMI 1000 800 -20...+70 open
AM-1280800P3TZQW-10H 7.0 1280 x 800 162.2 x 107.8 x 9.8 149.76 x 93.6 Full LVDS 1000 800 -20...+70 open
AM-1280800P4TZQW-THDH 7.0 1280 x 800 162.30 x 107.90 x 13.8 149.76 x 93.60 Full HDMI 850 800 -20...+70 PCAP EXC80W32 USB open
AM-1024768JTZQW-A0H 8.0 1024 x 768 183.4 x 138.348 x 6.5 162.048 x 121.536 Full LVDS 460 1800 -20...+70 open
AM-800600MPTNQW-T20H 8.4 800 x 600 203.0 x 145.5 x 8.0 170.4 x 127.8 12 o'clock LVDS 425 600 -20...+70 PCAP ILI2511 I2C open
AM-1280720MTZQW-00H 9.0 1280 x 720 211.44 x 126.89 x 6.96 198.72 x 111.78 Full LVDS 1000 1000 -30...+85 open
MACHMI0900HT-1 9.0 1280 x 720 212 x 127.50 x 7.90 198.72 x 111.78 Full 4-lane LVDS 1000 1000 -30...+85 open
AM-1280800NNTZQW-T20H 10.1 1280 x 800 231.86 x 151.5 x 3.9 216.96 x 135.6 Full LVDS 300 800 -20...+70 PCAP ILI2511 I2C open
AM-1280800NNTZQW-T24H 10.1 1280 x 800 231.86 x 151.5 x 3.9 216.96 x 135.6 Full LVDS 300 800 -20...+50 PCAP ILI2511 I2C open
AM-1280800W2TZQW-00H 10.1 1280 x 800 231.0 x 154.4 x 5.3 216.96 x 135.6 Full LVDS 1000 800 -20...+70 open
AM-1280800WGTZQW-00H 10.1 1280 x 800 231.0 x 154.4 x 5.3 216.96 x 135.6 Full LVDS 1500 800 -20...+70 open
AM-1280800WPTZQW-T02H 10.1 1280 x 800 231.0 x 154.4 x 5.3 216.96 x 135.6 Full LVDS 850 800 -20...+70 PCAP ILI2511 USB open
AM-1280800WPTZQW-T04H 10.1 1280 x 800 231.0 x 154.4 x 5.3 216.96 x 135.6 Full LVDS 850 800 -20...+70 PCAP ILI2511 USB open
AM-1280800WPTZQW-TH0H 10.1 1280 x 800 248.76 x 168.73 x 24.13 216.96 x 135.6 Full HDMI 850 800 -20...+70 PCAP ILI2511 USB open
AM-19201200H5TZQW-00H 10.1 1920 x 1200 229.46 x 149.1 x 8.75 216.8 x 135.5 Full LVDS 500 900 -20...+70 open
AM-800600LTNQW-U6H-B 10.4 800 x 600 236.0 x 176.9 x 21.2 211.2 x 158.4 6 o'clock UART, RS232, USB 400 400 -20...+70 UART, RS232 open
AM-800600LTNQW-TU6H 10.4 800 x 600 236.0 x 176.9 x 22.9 211.2 x 158.4 6 o'clock UART, RS232, USB 400 400 -20...+70 Resistive, 4-wire UART, RS232 open
AM-1024768Y3TZQW-TA1H 10.4 1024 x 768 236 x 174.3 x 11.62 211.2 x 158.4 Full LVDS 480 900 -20...+70 Resistive 4-wire 4-wire open
AM-1024768Y7TZQW-TABH 10.4 1024 x 768 225.8 x 174.3 x 5.6 211.2 x 158.4 Full LVDS 510 900 -20...+70 PCAP EXC3147 USB open
AM-1280800Q9TZQW-T41H 12.1 1280 x 800 278.0 x 184.0 x 10.4 261.1 x 163.2 Full LVDS 1020 1000 -30...+85 PCAP EXC80W46 USB open
AM-1280800Q9TZQW-T45H 12.1 1280 x 800 278.0 x 184.0 x 10.4 261.12 x 163.2 Full HDMI 1020 1000 -30 ...85 PCAP EXC80W46 USB open
AM-1920720B4TZQW-00H 12.3 1920 x 720 308.1 x 130.0 x 7.6 292.032 x 109.512 Full LVDS 850 1100 -30...+85 open
MACH-12.8-19201080-AWMN-003 12.8 1920 x 1080 299.8 x 179 x 7.35 283.39 x 159.41 Full LVDS 600 1000 -30...+85 open
AM-1024768ATZQW-31 15.0 1024 x 768 326.5 x 253.5 x 9.0 304.1 x 228.1 Full HDMI 500 2000 -20...+70 open
AM-19201080D1TZQW-TA0H 15.6 1920 x 1080 363.8 x 215.9 x 9.3 344.16 x 193.59 Full LVDS 380 800 -20...+70 PCAP ILI2510 USB open
AM-19201080D1TZQW-TA8H 15.6 1920 x 1080 363.8 x 215.9 x 9.3 344.16 x 193.59 Full LVDS 850 800 ILI2510 USB open
AM-12801024DTZQW-00 19.0 1280 x 1024 396.0 x 324.0 x 8.7 374.784 x 299.827 Full LVDS 250 1000 0...+50 open
AM-19201080MTZQW-T50 21.5 1920 x 1080 497.6 x 292.2 x 10.5 476.064 x 267.786 Full LVDS 298 1000 0...+50 PCAP ILI2510 USB open

Circular TFT

Grabbling Hand
Name Size (inch) Resolution TFT Outline dimension (mm) Active Area (mm) Viewing Area (mm) Interface Brightness (nits) Contrast Top (°C) Touch Screen Touch IC Part No Touch Interface
MACHT013240240-A2WMN-001 1.3 240 x 240 35.6 x 38.1 x 1.56 32.4 x 32.4 RGB + 3 line SPI 540 1100 -20...+70 open
MACHT013240240-A2WMN-004 1.3 240 x 240 43.8 x 43.8 x 2.44 32.4 x 32.4 4-wire 8-bit interface I 300 1100 -20...+80 nur Coverlens mit Black OCA open
MACHT021480480-A0WMN-001 FS 2.1 480 x 480 56.08 x 60.36 x 2.26 53.28 x 53.28 RGB + 3 wire SPI 280 1000 -20...+70 open
MACH-3.54-800640-AWMN-01 FS 3.54 800 x 640 97.7 x 83.89 x 4.1 90 x 72 24bit RGB + SPI 1200 1200 -30...+85 open
MACH-5.0-1080180-AWMN-01 FS 5.0 1080 x 1080 132.208 x 136.531 x 1.98 127.008 x 127.008 MIPI 400 1500 -20...+60 open

OLED Monochrome

Graphic OLED Monochrome

Grabbling Hand
Name Size (inch) Resolution OLED Outline Dimension (mm) Active Area (mm) View Direction Interface Brightness (nits) Contrast Top (°C) Touch Screen Touch IC Part No Touch Interface Remarks
MACHWEO012832DWPP3N 0.91 128 x 32 30.0 x 11.5 x 1.26 22.384 x 5.584 Full 4-wire SPI 150 10'000 -40...80 - - - - open
MACHWEO128128AWAP3N 1.5 128 x 128 33.80 x 36.50 x 2.05 26.86 x 26.86 Full 6800, 8080, SPI, I2C 100 2000 -40...+80 open
MACHWEO160128AWPP2N 1.92 160 x 128 34.5 x 48.8 x 1.41 28.908 x 39.34 Full 6800, 8080, SPI, I2C 100 10'000 -40...+80 open
MACHWEX025664BLAP3N 3.12 256 x 64 88.0 x 27.8 x 2.05 76.778 x 19.178 Full 6800, 8080, SPI 120 2000 -40...+70 open

Touch Monitors

Interactive Digital Signage

Grabbling Hand
Name Size (inch) Resolution Outline Dimension (mm) Active Area (mm) View Direction Interface Control Board Brightness (nits) Contrast Top (°C) Touch Screen Touch IC Part No Touch Interface Power Supply
MACHITL101 10.1 1280 x 800 249.50 x 168.37 x 29.0 216.96 x 135.6 Full VGA, DVI, HDMI Yes 301 800 0...+40 PCAP Ilitek USB 12 VDC (AC 100V-240V) open
MACHITL121 12.1 1024 x 768 293.0 x 33.6 x 223.0 245.7 x 184.3 Full VGA, DVI, HDMI Yes 430 1000 0...+40 PCAP Ilitek USB 12 VDC (AC 100V-240V) open
MACHITL150 15.0 1024 x 768 348.4 x 272.4 x 42.0 304.128 x 228.096 Full VGA, DVI Yes 258 700 0...+40 PCAP Ilitek USB 12 VDC (AC 100V-240V) open
MACHITL156 15.6 1920 x 1080 388.2 x 245.5 x 36.5 344.16 x 193.59 Full VGA, DVI, HDMI Yes 425 800 0...+40 PCAP Ilitek USB 12 VDC (AC 100V-240V) open
MACHITL170 17.0 1280 x 1024 384.17 x 316.59 x 39.5 337.920 x 270.336 Full VGA, DVI Yes 301 1000 0...+40 PCAP Ilitek USB 12 VDC (AC 100V-240V open
MACHITL185 18.5 1920 x 1080 453.84 x 286.44 x 40 409.80 x 230.40 Full VGA, DVI Yes 430 1000 0...+40 PCAP Ilitek USB 24 VDC (AC 100V-240V) open
MACHITL190 19.0 1280 x 1024 435.80 x 363.50 x 41.0 376.32 x 301.06 Full VGA, DVI Yes 215 1000 0...+40 PCAP Ilitek USB 12 VDC (AC 100V-240V) open
MACHITL215 21.5 1920 x 1080 526.01 x 317.61 x 40.8 477.0 x 269.0 Full VGA, DVI, HDMI Yes 430 3000 0 ...+40 PCAP Ilitek USB 24 VDC (AC 100V-240V) open
MACHITL236 23.6 1920 x 1080 572.49 x 41.05 x 343.49 521.28 x 293.22 Full VGA, DVI, HDMI Yes 258 1000 0...+40 PCAP Ilitek USB 12 VDC (AC 100V-240V) open
MACHIDS320 32.0 1920 x 1080 757.5 x 451.5 x 78.5 698.4 x 392.85 Full VGA, HDMI Yes 387 3000 0...+40 PCAP Ilitek USB 12 VDC (AC 100V-240V) open
MACHIDS430 43.0 3840 x 2160 1001.2 x 75.7 x 589.4 953.0 x 543.0 Full VGA, HDMI Yes 258 1200 0...+40 PCAP Ilitek USB 12 VDC (AC 100V-240V) open

E-Paper

Graphic E-Paper

Grabbling Hand
Name Size (inch) Resolution E-Paper Outline Dimension (mm) Active Area (mm) Standby Power (mW) Technology Grayscale Interface Full Refresh (s) Partial Refresh (s) Top (°C)
MACHGDEW0102T4 1.02 128 x 80 32.57 x 18.6 x 0.98 21.76 x 14 0.0165 B/W 2 SPI 3 0.3 0...50
MACHGDEH0154D67 1.54 200 x 200 37.32 x 31.80 x 1.05 27 x 27 0.006 B/W 4 SPI 2 0.26 0...50 open
MACHGDEH0154Z90 1.54 200 x 200 37.32 x 31.80 x 0.9 27 x 27 0.0099 B/W/R 2 SPI 15 0...40
MACHGDEM0154C90 1.54 152 x 152 31.8 x 37.32 x 1.0 27.512 x 27.512 0.003 B/W/Y 2 SPI 30 0...40
MACHGDEM0154D67 1.54 200 x 200 31.8 x 37.32 x 1.0 27 x 27 0.003 B/W 4 SPI 2 0.26 0...50
MACHGDEW0154M09 1.54 200 x 200 31.8 x 37.32 x 0.98 27.6 x 27.6 0.0165 B/W 2 SPI 0.82 0.3 0...50
MACHGDEW0154M10 1.54 152 x 152 31.8 x 37.32 x 1.02 27.512 x 27.512 0.0165 B/W 2 SPI 3 -20...60
MACHGDEM0213B74 2.13 250 x 122 29.2 x 29.2 x 1.0 48.55 x 23.7 0.003 B/W 4 SPI 3 0.4 0...50
MACHGDEM0213C90 2.13 250 x 122 59.2 x 29.2 x 1.0 48.55 x 23.70 0.003 B/W/Y 2 SPI 30 0...40
MACHGDEW0213M21 2.13 212 x 104 59.2 x 29.2 x 1.02 48.548 x 23.712 0.0165 B/W 2 SPI 3 -20...60
MACHGDEY0213Z98 2.13 250 x 122 59.2 x 29.2 x 1.0 48.55 x 23.7046 0.003 B/W/R 2 SPI 14 0...40
MACHGDEM029C90 2.9 296 x 128 79.0 x 36.7 x 1.2 66.9 x 29.06 0.003 B/W/Y 2 SPI 30 0...40
MACHGDEM029E97 2.9 296 x 128 79.0 x 36.7 x 1.2 66.9 x 29.06 B/W 2 SPI 3 0...50
MACHGDEM029T94 2.9 296 x 128 79 x 36.7 x 1.2 66.9 x 29.06 0.0033 B/W 4 SPI 3 0.3 0...50
MACHGDEW029M06 2.9 296 x 128 79 x 36.7 x 1.22 66.896 x 29.056 0.0165 B/W 2 SPI 3 -20...60
MACHGDEW029T5D 2.9 296 x 128 79 x 36.7 x 1.18 66.9 x 29.06 0.0165 B/W 4 SPI 3 0.3 0...50
MACHGDEW029Z13 2.9 296 x 128 79 x 36.7 x 1.18 66.9 x 29.06 0.0165 B/W/R 2 SPI 12 0...40
MACHGDEW0371W7 3.71 416 x 240 92.99 x 53 x 1.18 81.536 x 47.04 0.09 B/W 2 SPI 4 0...50
MACHGDE043A2 4.3 800 x 600 104 x 74.6 x 1.24 88 x 66 0.4 B/W 16 Parallel 1 1 0...50
MACHGDEW0583T8 5.83 648 x 480 125.4 x 99.5 x 1.18 119.232 x 88.32 0.0165 B/W 2 SPI 4 0...50
MACHGDEY075T7 7.5 800x480 170.20 x 111.20 x 1.25 163.20 x 97.92 0.0165 B/W 4 SPI 3 0...50
