New benchmark for color e-paper displays: Perfect performance in 10.3 inch size!
Color e-paper displays that can play videos combine innovative material science with clever electronics and optimization strategies. Our new e-paper display combines groundbreaking technology with first-class design: with a color display of 4096 colors and a refresh rate of an impressive 60 frames per second, it sets new standards. This means that not only still images but also short videos can be shown on this display. On a diagonal of 10.3 inches, the display offers a resolution of 1120 x 840 square color pixels - for razor-sharp and vivid images. The generous active area of 209.664 x 157.248 mm ensures optimum usability with minimum space requirements.
With the Intel80 MCU interface, the display can be seamlessly integrated into your applications and impresses with its versatility in display and operating solutions. With an overall size including glass backplane of 216.7 x 174.4 x 0.8 mm, it is not only powerful, but also extremely flat and lightweight. Ideal for modern designs, dynamic presentations, interactive control panels or innovative advertising displays.
Take your projects to the next level - with an e-paper display that perfectly combines design and technology. Discover the future of display and operating solutions!
- Color E-Paper with 4096 colors and a resolution of 1120 x 840 Pixels
- Fast response time for 60 pictures per second
- Wide viewing anle and high contrast
- Operating temperature 0 ... 50°C
- available in Landscape and Portrait Format
For more information: Contact

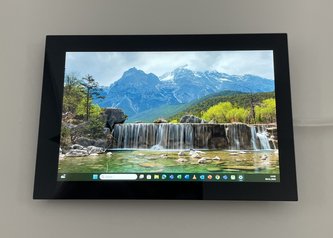

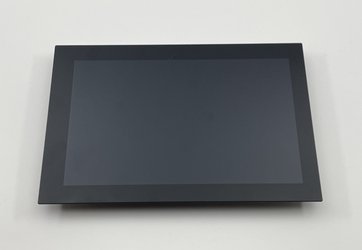

Discover our TFT touch displays with USB-C interface – versatile, modern, and powerful!
The USB-C connector offers the option of transporting the display and touch signals and as well the power supply via a single cable, makes it easy to operate the unit. An additional backup power input via micro USB guarantees maximum flexibility. Small to medium sizes are covered with 2.4 to 10.1 inch displays. The IPS TFT displays deliver crystal-clear images, high contrast and maximum viewing angles from all directions. The capacitive multi-touch ensures simple and precise control, while the optical bonding technology minimizes reflections and improves image quality. Each model has a robust standard cover lens with one color printing. Of course, customer-specific adjustments can be made to the cover lens.
Compatible with Windows, Android and Linux systems, the displays are the ideal choice for industrial, commercial and creative applications. Combine modern design with easy integration - and take your projects to the next level!
- USB-C interface – one port for everything
- IPS TFT with capacitive touch in various sizes
- Best possible image quality with IPS TFT and optical bonding technology
- Coverlens can be customized
For more information: Contact

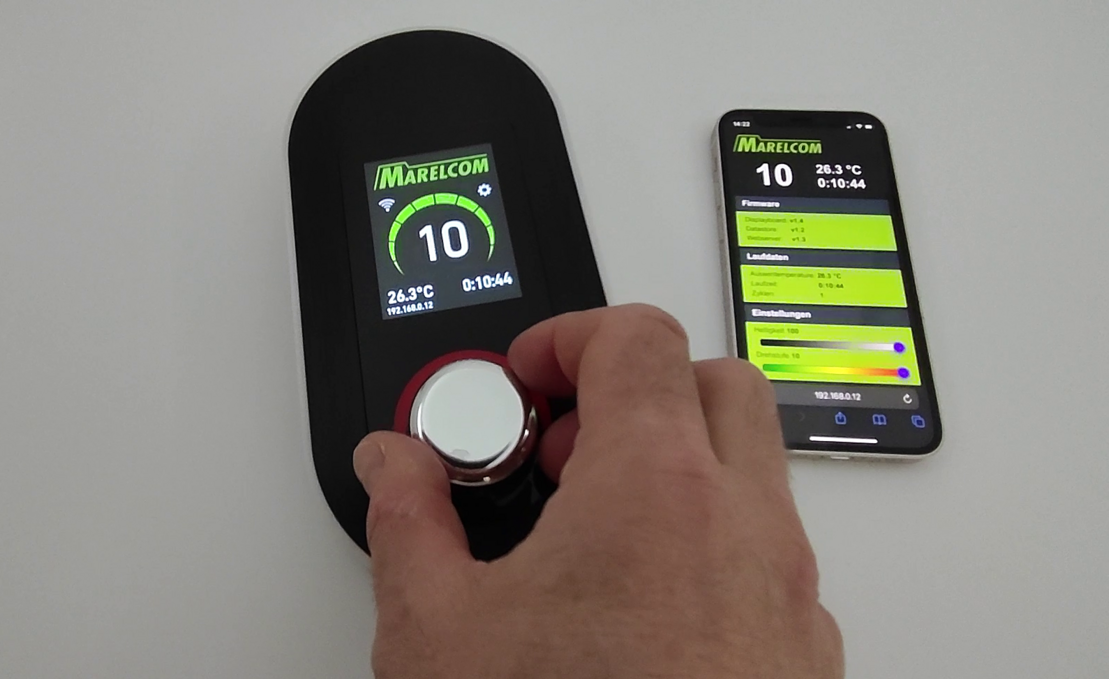

Discover the world of the Internet of Things (IoT) with Marelcom AG, your trusted partner for innovative solutions. Our customised IoT solutions enable you to efficiently control and monitor your environment. From smart home applications to industrial IoT optimisation, we are at your side to successfully implement your project. Let's shape the future together and explore the possibilities of IoT with Marelcom AG!
Contact Marelcom AG today to learn more about how their IoT solutions can benefit your business.
Accessing the device's statistical data currently requires physical presence at the device's location due to two main methods:
1. Physical Connection: The device must be physically opened and connected to a PC via a service connector.
2. On-Device Display: Alternatively, the data can be viewed directly on the device's display.
Proposed Solution:
To eliminate the need for physical presence, the device can be connected to the internet. This would enable remote access to the statistical data.
A WiFi module is required in the device.
Additional software is required to transfer the desired data to the WiFi module and make it available via a web server or to forward it to a specific web server.
The data can either be read and manipulated wirelessly from the device on site, or the device can be connected to the internet to send the data to a cloud. In this way, the manufacturer has the data available in real time.
In addition, the firmware can be updated wirelessly.
When a device is accessible over the Internet, it must be ensured that it does not represent a security vulnerability for the entire local network.
If the device has a security vulnerability, an attacker could access the local network and the devices in it via this device.
This must be prevented under all circumstances.
WiFi module
It is necessary to implement the data exchange between the microcontroller (uP) and the WiFi module. The associated effort varies from low to significant depending on the amount and type of data to be transmitted.
Creating a website to display the data:
Variant 1:
Configuring a web server
Variant 2:
Implementing data encryption
Configuring a cloud
Transimitting data to the cloud.

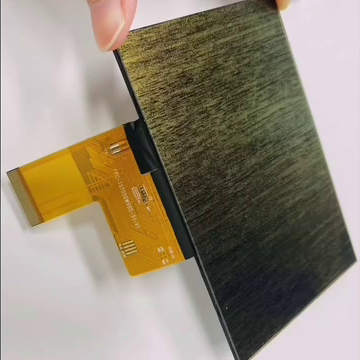

TFT display with a wooden look?
Yes, this is possible! Marelcom AG offers you this special look for customized solutions. A cool effect, which reproduces the wood grain deceptively real. When switched off, only the wood structure remains visible and as soon as the display is switched on, the wood effect disappears in the displayed area.
This effect can be used for any TFT size. The structure is possible in the color of your choice. A combination with a capacitive touch or a special shape of the cover lens - almost everything is possible.
Are you interested in more information?
Do not hesitate to contact us via mail or phone.
A suitable application of round TFT displays is the combination with encoders. Marelcom AG has in its assortment 3 different sizes.
The unit is a closed solution that perfectly combines the display, the encoder, the button and the status LED in one rotary knob display. The unique innovative structure and exquisite manufacturing process of the module ensure excellent reliability and control experience. The unit is suitable as a rotary knob control in many industrial applications of electronic products.
Possible sizes:
1.3" IPS TFT with push switch, integrated encoder and LED indicator
2.1" IPS TFT with push switch, integrated encoder and LED indicator
2.5" IPS TFT with push-switch, integrated encoder and LED indicator
All 3 units are built the same way and have the same interface. The IPS TFT is controlled via a serial interface. For the status LED a RGB LED illumination was chosen. The color of the status LED illumination can be chosen freely. Encoder, push switch and LED illumination are controlled separately. The complete unit is connected via a 10 pin standard FPC connector with a pitch of 0.5 mm, no matter which unit you choose.
Optionally the unit can be equipped with a capacitive touch.
For further details please have a look at the specification, which you can download by clicking on the desired type or contact us by mail or phone.
1.3" MACHRT-TFT-4613
2.1" MACHRT-TFT-7821
2.5" MACHRT-TFT-9225
We present you our new webpage. You’re welcome to browse our newly improved site and get an overview of our company, our products, and our development services. Easily navigate with the drop menu to go directly to the desired subject area.
An elegant glass surface for TFT units whether the display is turned on or off!
The cover lens is usually fully connected to the capacitive touch sensor with a transparent OCA. Depending on the type of display and the polariser used, the TFT active area remains visible when it’s switched off. Dark bonding is used to eliminate this effect and achieve an elegant surface even when switched off, meaning the TFT active area is no longer visible.
Are you interested in a dark bonding solution? Contact us, and we will be happy to demonstrate the disappearing effect at your location.
To Our Valued Customers
Since the Covid-19 outbreak, we have seen a significant weakening of the logistics chain in the Far East. As a result, we are now encountering massively higher logistics costs and longer transit times. Additionally, the current economic environment is confronted with a supply crisis. Therefore, we are overwhelmed by a supply shortage in the global semiconductor sector. Prices are soaring that even simple controllers are currently difficult to obtain. Manufacturers can expect delivery times to be 40 weeks or more!
Consequently, the European market for display glasses is affected, and supply is becoming scarce. Therefore, prices and delivery times have also increased noticeably in Switzerland in the last few weeks.
Plastic granules for injection molded products have not escaped the predicament. They have become exceedingly expensive this year, not to mention a supply shortage as well as delayed delivery times.
Due to this crisis, we strongly suggest that you plan early, and determine your future needs for the year ahead. Please consult us about the products as soon as possible and expect that last year’s prices may no longer be valid.
We expect that this crisis is not going away any time soon and will probably worsen in the coming months.
We are always at your disposal for further inquiries and thank you for thinking ahead.
Sincerely Yours,
Marelcom AG
Hans-Jörg Marti Hansruedi Freuler
CEO CFO/CLO
There are countless applications where germ-free surfaces make everyday life easier. Be it in medicine, the food industry, retail, public buildings, and even in clothing. Glass benefits from the same antibacterial effect. Displays and capacitive touch panels can now be built with an antibacterial front glass that fulfill hygiene regulations. It’s a glass that has additional bacteriostatic and sterilizing functions, while preserving the original functions and properties of the glass. Marelcom offers the possibility of producing front glasses with an antibacterial coating.
Silver is proven to be effective against bacteria. Positively charged silver ions absorb negatively charged bacteria, thereby disturbing the bacterial charge balance. Silver ions easily enter the bacteria and stop the respiration and reproduction of bacteria. They inhibit the growth, quickly combining the proteases of bacteria to destroy them, making bacteria inactive.
The coating process of antibacterial glass is relatively simple. The coating can be applied to a wide variety of materials. When it comes to glass, type, thickness, length, and width don’t make a difference.
Antibacterial glass can be chemically or physically toughened, and the tempering performance is the same as the standard value of non-antibacterial glass. The subsequent application of AF allows the double function of antibacterial and anti-fingerprint on the glass surface, whereby the functions are not mutually disadvantageous.
A combination of anti-reflection glass or anti-glare glass is also possible.
